Adhesive Peel Tester

This is a Tensile Tester specifically designed to perform the following :

  • 180° Adhesive Peel Test.
  • 90° Adhesive Peel Test.
  • Loop Tack Test.
  • Roll Peel Test.
  • Release Force Test of Silicon Liners

Suitable for : PSA Tapes and Labels

Confirms to : PSTC 101 / PSTC 16 / PSTC 8 / ASTM D 3330

PackTest Product Video on Youtube

Clear

Description

Tensile Strength Tester.
(Adhesive Peel Tester)
Single Column Design
Fully Automatic Computerised Model (with Windows 7 based PC software).
Full Controls via computer.
Test Report Printing Facility (with Load vs Distance Graph)
( Includes Software and Linking Hardware. PC & Printer to be provided by you. )

Suitable for (using Optional Fixtures):

  • 180º Adhesive Peel Test on PSA Tapes and Labels.
  • 90º Adhesive Peel Test on PSA Tapes and Labels.
  • Loop Tack Test on PSA Tapes and Labels.
  • Roll Peel Test on PSA Tapes.
  • Release Force Test of Silicon Liners.

Digital Model with Backlit LCD Display for easy readability.

Model Options :

Model AP-1-DX-Pro AP-5-DX-Pro AP-10-DX-Pro AP-20-DX-Pro
Capacity 1 Kgf
2 Lbf
10 N
5 Kgf
10 Lbf
50 N
10 Kgf
20 Lbf
100 N
20 Kgf
40 Lbf
200 N
Normal Range 10-90% of Capacity
Max Range 5-100% of Capacity
Resolution 0.0001 Kgf
0.0002 Lbf
0.001 N
0.0005 Kgf
0.001 Lbf
0.005 N
0.001 Kgf
0.002 Lbf
0.01 N
0.002 Kgf
0.004 Lbf
0.02 N
Accuracy 0.2% of Capacity

Choice of Measurement units : Kgf / gf / Lbf / N                  (User settable from Menu)
Auto-Calibration facility at 100g / 1 Kg / 3 Kg / 5 Kg
(Dead Weights for calibration will be supplied with the machine)

Travel length :           Standard :      750 mm
Other lengths are also available on request.

With Imported Ball Screw and Slide Mechanism for extra high smoothness.
With DC Stepper Motor Drive System
With Digital Step based Extension Measurement
Variable Travel speed: 10-500 mm/min (± 5 mm/min)

Test Modules for Adhesive Peel Test :

  • 180º Peel Test Module (180 PTM)

With special fixture to hold Glass / SS Test Panels.
For general purpose Peel Testing.
Includes :  2 pc of Stainless Steel Test Panel (50x150mm) with Annealed Finish (Made in USA)
Extra Test Panels can be purchased separately

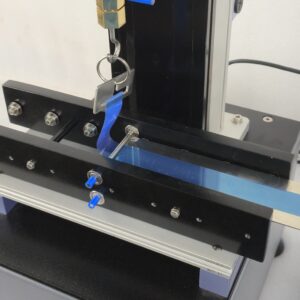

  • 90º Peel Test Module (90 PTM)

Special Sliding Assembly to perform 90º Peel Test.
Generally used in cases where the Adhesive is stronger than the Substrate and cannot be tested suitably by the 180° method.
Includes : 2 pc of Stainless Steel Test Panel (75x225mm) with Annealed Finish (Made in USA)
Extra Test Panels can be purchased separately

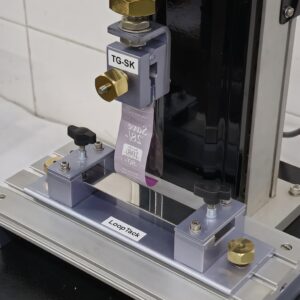

  • Loop Tack  Test Module

Special Fixture to perform Loop Tack Test of Adhesive Labels / Tapes.
Includes : 2 pc of Stainless Steel Test Panel (25x150mm) with Annealed Finish (Made in USA)
Extra Test Panels can be purchased separately

  • Roll-Peel Test Module

With Special Roll holder to perform Roll-Peel Test of Adhesive Tapes
Max tape width : 2 Inches.

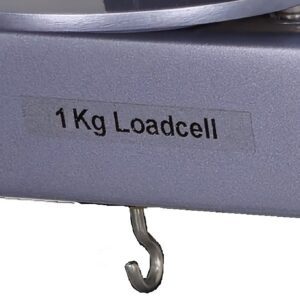

  • Release Force Test Module

For Low capacity / high accuracy testing of very low values of Release Force.

Accessories for 180 / 90 Degree Adhesive Peel Test :

  • Sample Cutter – 1” Width Included

Double Blade arrangement with Round Handle
(MOC – Handle = Aluminum, Blade Restraints = Mild Steel / Stainless Steel)

  • Pressure Roller – 4.5 lbs Included

Rubber coated roller with Round Handle
(MOC – Handle = Mild Steel / Polymer, Roller = Mild Steel (Rubber Lined)

Utilities Required (To be supplied by the buyer) :

  • Power Supply : 230/110 Volts AC at 50/60 Hz.             (Fluctuation Free Power required)
  • Desktop PC or Laptop PC

Processor Type :   Intel Core I3 or better.   (Preferably Core I5 or Higher)
Memory :              4 GB RAM or better
Space :                  50 GB free HDD space (minimum)
Monitor :               17” or Larger Color Monitor with 1280 x 1024 resolution or better
Operating System: Windows 7 Home Premium or higher (with latest updates & patches)
Supporting Software :       Adobe Acrobat Reader (Latest Version).
Microsoft Dot Net Framework (Latest Version)
Printer :                 Laser or Inkjet Printer.

IQOQ Documentation Set available for Pharmaceutical companies

Additional information

Capacity

1 Kgf / 2 Lbf / 10 N, 5 Kgf / 10 Lbf / 50 N, 10 Kgf / 20 Lbf / 100 N, 20 Kgf / 40 Lbf / 200 N
