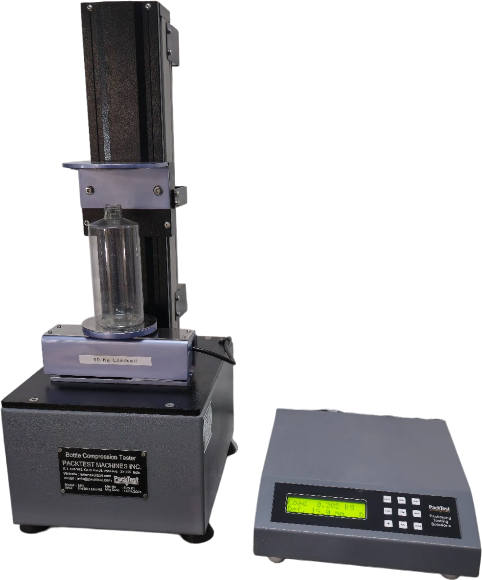

Bottle Compression Tester

Bottle Compression Tester

A Bottle Compression Test evaluates the strength of plastic bottles under compressive force. It determines how much force a bottle can withstand before deforming or collapsing, ensuring durability during capping, stacking, and transportation. The test helps manufacturers optimize bottle design and material selection for better performance.
Lead Time : 6 - 8 weeks
SKU: N/A Categories: , , , , , , , , ,

Bottle Compression Tester

Technical Specifications :

  • Digital Model with Backlit LCD Display
  • Electro-Mechanical Model
  • Ball Screw based Actuator for extremely low friction.
  • Negligible maintenance needed.
  • Table Top Model.
  • Auto-stop upon completion of Test.
  • Testing Principle : Constant Rate of Deflection
  • With software to capture test data on to the PC directly.
  • Generate PDF test & calibration reports.
  • Peak hold facility for maximum compression force.
  • Deflection measurement with 0.1 mm resolution.
  • User-friendly Calibration Check and Calibration Rectification.
  • Choice of Measurement units : Kgf / Lbf / N (User settable from Menu)
Test Speed :

10 – 500 mm/min (user settable)

Jog Speed :

250 mm/min

Test Sample Diameter :

10 – 100 mm

Test Sample Height :

50 – 300 mm

Models Available

Model

M20

M50

Capacity :

20 Kgf
196 N
44 Lbf
50 Kgf
490 N
110 Lbf

Working Range :

10 – 100 % of Capacity.
2 – 20 Kgf
19.6 – 196 N
4.4 – 44 Lbf
10 – 100 % of Capacity.
5 – 50 Kgf
49 – 490 N
11 – 110 Lbf

Least Count :

0.002 Kgf
0.02 N
0.005 Lbf
0.005 Kgf
0.05 N
0.01 Lbf

Accuracy :

0.2 % of Capacity.
0.04 Kgf
0.4 N
0.09 Lbf
0.2 % of Capacity.
0.1 Kgf
1 N
0.22 Lbf

Calibration Weight Required :

5 Kgs
5 Kgs

Included :

    1. RS-232 Data Cable with USB-Serial Convertor are supplied with all models / SKUs.
    2. DQ/IQ/OQ Documentation are supplied with certain SKUs for Pharmaceutical Industry use.

    Excluded :

      1. Calibration Weights (5 Kgs)

      Software Options :

      1. Regular Software (Not 21-CFR-11 Compliant)
      2. 21-CFR-11 Compliant Software (Vantage).

      Click here for detailed feature comparison of Regular vs 21-CFR-11 Compliant Software

      Utilities Require​d :

      1. Power Supply (Current : Max 5 Amps) :
        • For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
        • For Outside India (Export Model) : As per your country’s power rating.
      2. Desktop / Laptop PC (Intel Core i3, 4gb RAM, Win10 OS, 1080p Monitor) or higher.

      Warranty : 12 Months (Back-to-Bench)
