Coefficient of Friction (COF) Tester
A coefficient of friction (COF) tester is used to measure the static and kinetic friction of flexible packaging materials, such as plastic films, laminates, and coated papers. This helps manufacturers ensure smooth processing, stacking, and handling of packaging materials.
Confirms to : ASTM D1894 / ISO 8295 / TAPPI T549
Lead Time : 6-8 weeks

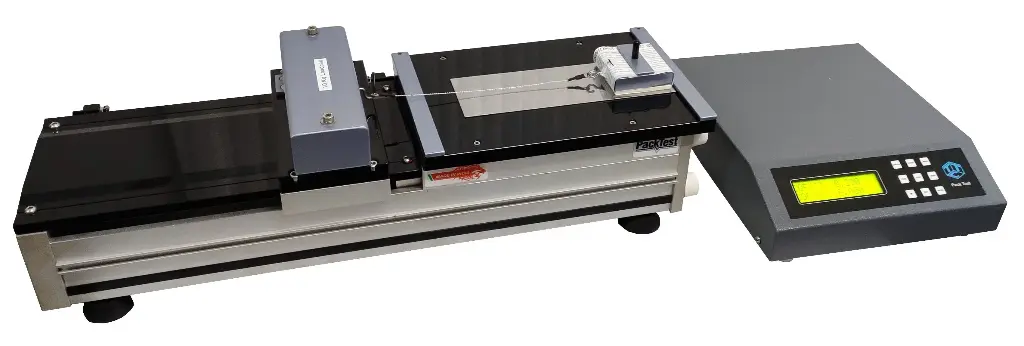

Coefficient of Friction (COF) Tester
Types of Test :
-
- Static COF Measurement: Determines the force required to initiate movement between two surfaces.
- Kinetic COF Measurement: Measures the force needed to maintain movement once sliding begins.
Technical Specifications :
- Digital Model with Backlit LCD Display
- With Embedded Push Button Control on Digital Indicator / Controller.
- Ball-Screw driven actuator for smooth and maintenance-free operation.
- Hybrid Stepper Motor with Drive for precise speed control and Vibration / Noise Free operation.
- Automatic Calculation of Static & Dynamic COF. No Calculation Required.
- Optional Software to capture test data on to the PC directly through the software and generate PDF test & calibration reports.
- Peak hold facility for maximum load and deflection
- Auto-Calibration facility for user-friendly calibration.
- Suitable to test COF of Paper, Paper Board, Plastic Films, Laminates, etc.
- Paper / Film vs Paper / Film
- Paper / Film vs Metal
Models Available
Model
M1
M5
M10
Capacity :
1 Kgf
1000 gf
9.8 N
2.2 lbf
5 Kgf
5000 gf
49 N
11 lbf
10 Kgf
10000 gf
98 N
22 lbf
CoF Working Range :
> 0.0250
> 0.1250
> 0.250
CoF Least Count :
0.0005
0.0025
0.005
CoF Accuracy :
0.2 % of Capacity.
0.01
0.05
0.1
Recommended usage :
R&D Laboratory
QC Laboratory
Production Area
Included with all models / SKUs :
- Basic Machine with 200gm Sled.
- SS Templates to cut Sled and Base samples.
- SS Test Panel (ASTM) for Paper / Film to Metal Testing.
- RS-232 Data Cable with USB-Serial Convertor are supplied with models / SKUs which come with software.
- DQ/IQ/OQ Documentation are supplied with certain SKUs for Pharmaceutical Industry use.
Excluded ( to buy separately ) :
- None
Software Options :
- No Software
- Regular Software (Not 21-CFR-11 Compliant)
- 21-CFR-11 Compliant Software (Vantage).
Click here for detailed feature comparison of Regular vs 21-CFR-11 Compliant Software
Utilities Required :
- Power Supply (Current : Max 5 Amps) :
- For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
- For Outside India (Export Model) : As per your country’s power rating.
- Desktop / Laptop PC (Intel Core i3, 4gb RAM, Win10 OS, 1080p Monitor) or higher.
Warranty : 12 Months (Back-to-Bench)
