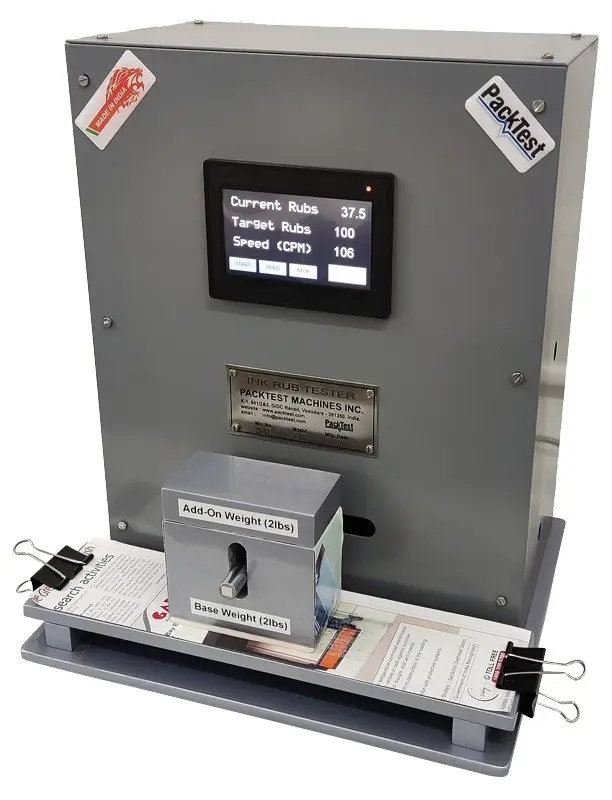

Ink Rub Tester (Sutherland Type)
This equipment is suitable for Semi-Flexible Printed Substrates such as Duplex Board as well as Flexible Printed Substrates such as Films / Foils / Laminates / Labels, etc.
Lead Time : 6 - 8 weeks
Ink Rub Tester / Linear Rub Tester (Sutherland Type)
Abrasion resistance is a desirable and sometimes critical property of printed materials. Abrasion damage can occur during shipment, storage, handling and end-use. The result is a significant decrease in product appearance and legibility of product information. The amount of abrasion damage to a printed surface is dependent on shipping, handling, temperature and humidity conditions, storage time and many other variables.
This equipment is meant for flexible as well as semi-rigid substrates like Plastic Films / Laminates / Paper Board / Duplex Board / Aluminum Foils, etc.
Principle :
In this machine, 2 samples of the same (or different) substrates are rubbed against each other in the same plane (in linear direction), under a fixed pressure (user-settable) and at a controlled speed (user-settable).
Method of rubbing : Linear Rub (Left-Right Motion)
Model : T4
Design specifics :
- Delta brand PLC with Touchscreen display / control.
- 4.3 inch Touchscreen
- Digital Display of Rub Counts and Speed.
- Simple / Maintenance-free design.
- Very Low power consumption.
- Compact but Sturdy Design.
- Very Low Noise Level.
- User - Friendly Controls on touch screen.
- Programmable Setpoint with Auto-Stop and Alarm on Test Completion.

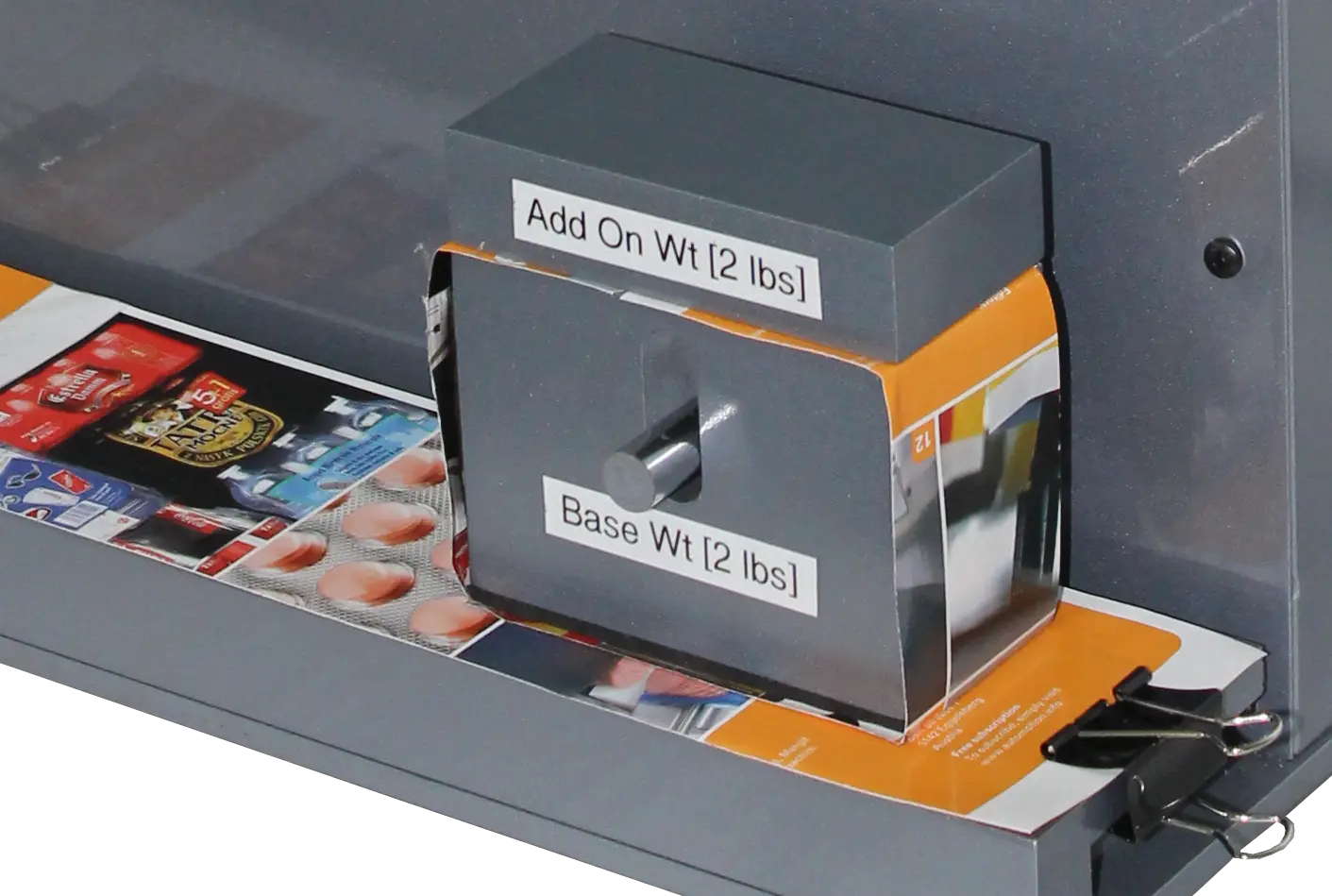

Rubbing Weights :
-
- Base Weight : 2 lbs. Equivalent to 0.5 psi rubbing pressure.
- Addon Weight : 2 lbs. Equivalent to additional 0.5 psi rubbing pressure.
Rubbing Speed : 21 / 42 / 85 / 106 rubs per min (user selectable)
Included with all models / SKUs :
- Large (Lower) Sample Marking Template (MOC : Stainless Steel)
- Small (Upper) Sample Marking Template (MOC : Stainless Steel)
- Spring clips, to hold lower sample to the base of the equipment.
- Extra / Spare foam pads (to be attached to the base weight).
- DQ/IQ/OQ Documentation are supplied with certain SKUs for Pharmaceutical Industry use.
Excluded (to be purchased separately) :
- None
Software Options :
- Not applicable.
Utilities Required :
- Power Supply (Current : Max 5 Amps) :
- For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
- For Outside India (Export Model) : As per your country’s power rating.
Warranty : 12 Months (Back-to-Bench)
