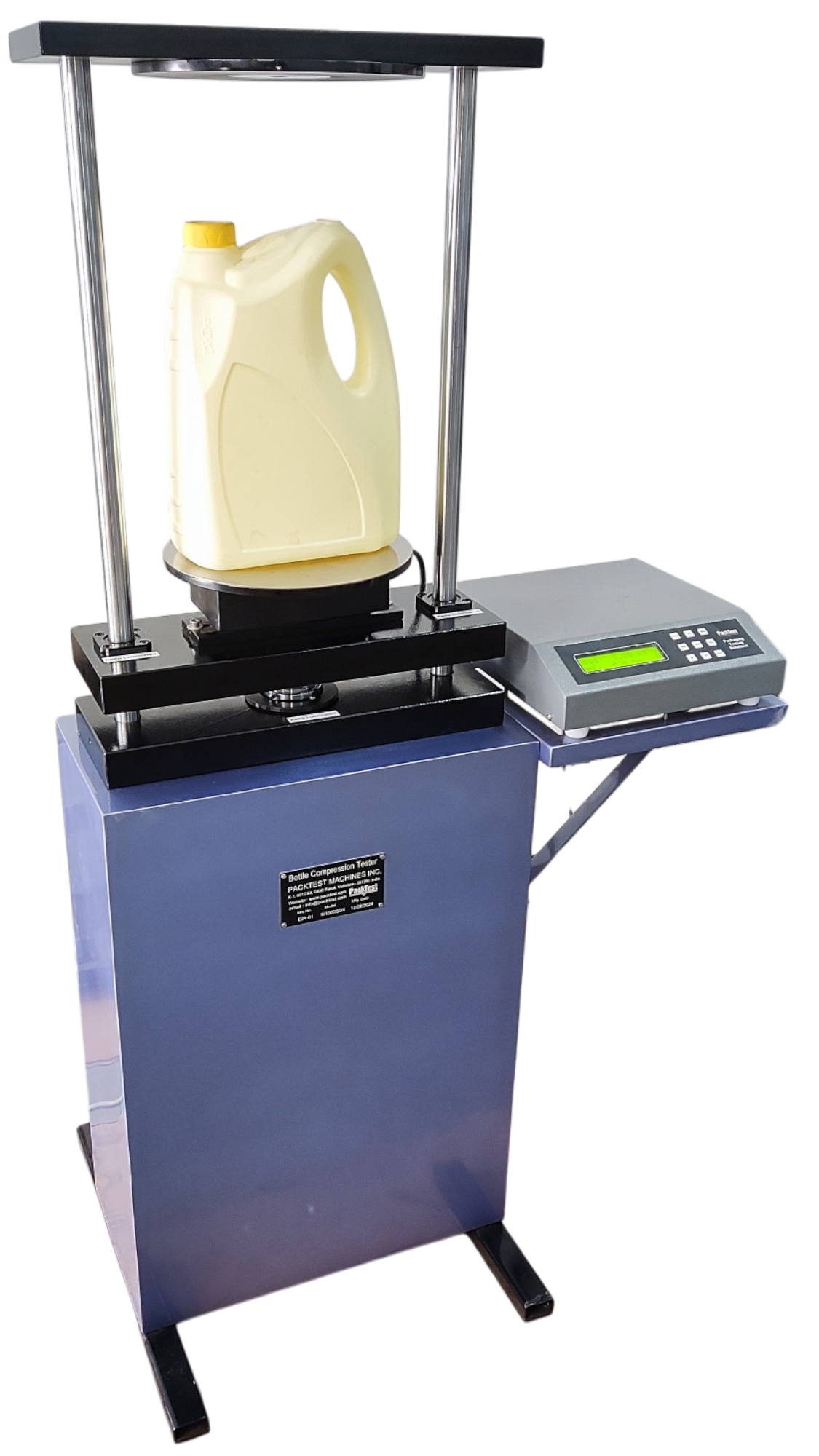

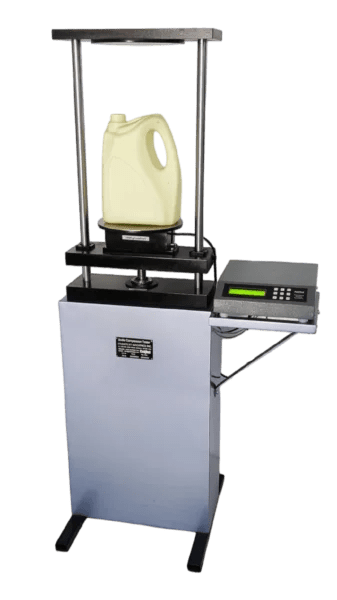

Jar Compression Tester

Jar Compression Tester

A Bottle Compression Test evaluates the strength of plastic bottles under compressive force. It determines how much force a bottle can withstand before deforming or collapsing, ensuring durability during capping, stacking, and transportation. The test helps manufacturers optimize bottle design and material selection for better performance.
Lead Time : 6 - 8 weeks
SKU: N/A Categories: , , , , , , , , ,

Jar Compression Tester

Technical Specifications :

  • Digital Model with Backlit LCD Display
  • Electro-Mechanical Model
  • Ball Screw based Actuator for extremely low friction.
  • Negligible maintenance needed.
  • Table Top Model.
  • Auto-stop upon completion of Test.
  • Testing Principle : Constant Rate of Deflection
  • With software to capture test data on to the PC directly.
  • Generate PDF test & calibration reports.
  • Peak hold facility for maximum compression force.
  • Deflection measurement with 0.1 mm resolution.
  • User-friendly Calibration Check and Calibration Rectification.
  • Choice of Measurement units : Kgf / Lbf / N (User settable from Menu)
Test Speed :

10 – 100 mm/min (user settable)

Jog Speed :

100 mm/min

Test Sample Diameter :

20 – 250 mm

Test Sample Height :

50 – 400 mm

Models Available

Model

M100

M200

Capacity :

100 Kgf
980 N
220 Lbf
200 Kgf
1960 N
440 Lbf

Working Range :

10 – 100 % of Capacity.
10 – 100 Kgf
98 – 980 N
22 – 220 Lbf
10 – 100 % of Capacity.
20 – 200 Kgf
196 – 1960 N
44 – 440 Lbf

Least Count :

0.01 Kgf
0.1 N
0.02 Lbf
0.02 Kgf
0.2 N
0.04 Lbf

Accuracy :

0.2% of Capacity
2 Kgf
20 N
4 Lbf
0.2% of Capacity
4 Kgf
40 N
8 Lbf

Calibration Weight Required :

20 Kgs
20 Kgs

Included :

    1. RS-232 Data Cable with USB-Serial Convertor are supplied with all models / SKUs.
    2. DQ/IQ/OQ Documentation are supplied with certain SKUs for Pharmaceutical Industry use.

    Excluded :

      1. Calibration Weights (5 Kgs)

      Software Options :

      1. Regular Software (Not 21-CFR-11 Compliant)
      2. 21-CFR-11 Compliant Software (Vantage).

      Click here for detailed feature comparison of Regular vs 21-CFR-11 Compliant Software

      Utilities Require​d :

      1. Power Supply (Current : Max 5 Amps) :
        • For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
        • For Outside India (Export Model) : As per your country’s power rating.
      2. Desktop / Laptop PC (Intel Core i3, 4gb RAM, Win10 OS, 1080p Monitor) or higher.

      Warranty : 12 Months (Back-to-Bench)
