Mini Drop Tester
A mini drop tester can be used for very small packages such as electronics (eg. mobile phones) or medical devices (eg. test kits) to evaluate how well the product or its packaging withstands accidental impacts during handling, shipping, distribution or even daily usage. It helps manufacturers ensure product safety and minimize damage risks.
Key Aspects of Drop Testing

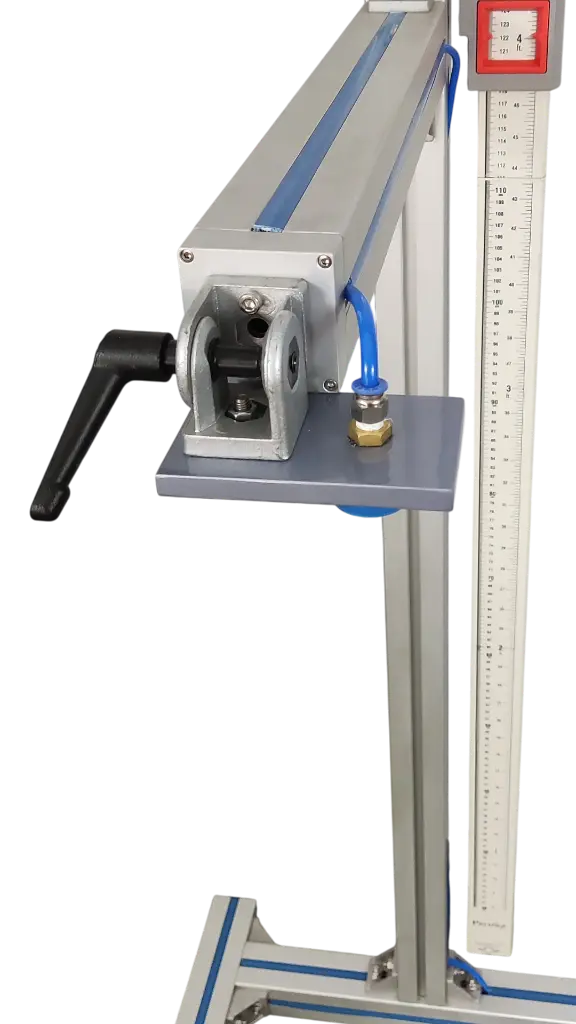

- Drop Heights – Products / Packages can be dropped from 0.5 - 2.0 mtr height. Drop height can be adjusted by manually adjusting the drop arm height.
- Drop Surface – The equipment comes with an base stand with an open bottom. So you can place it on any surface (granite / marble / Ceramic Tile / Carpet / Concrete, etc) to test the drop effect on that particular surface.

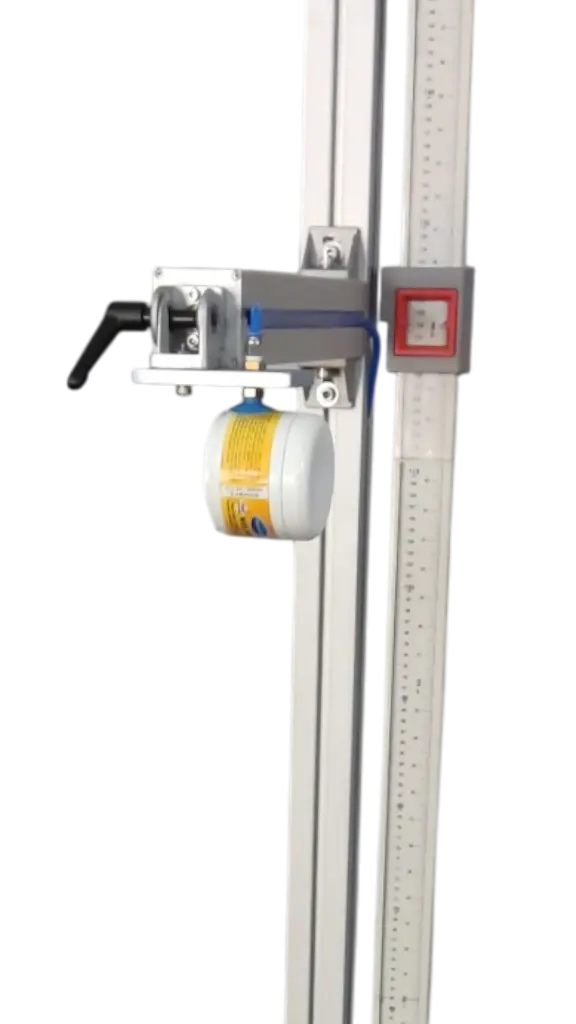

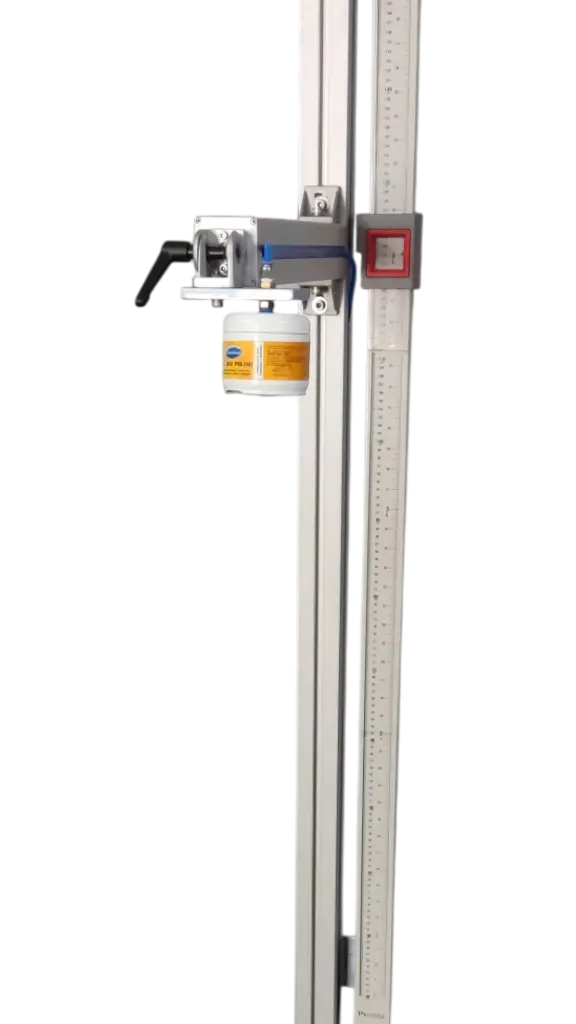

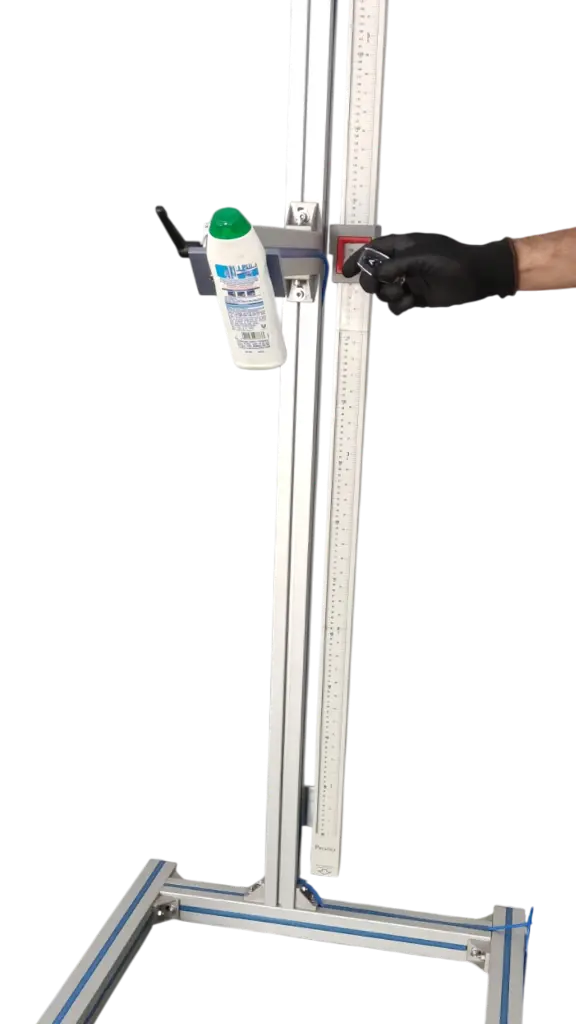

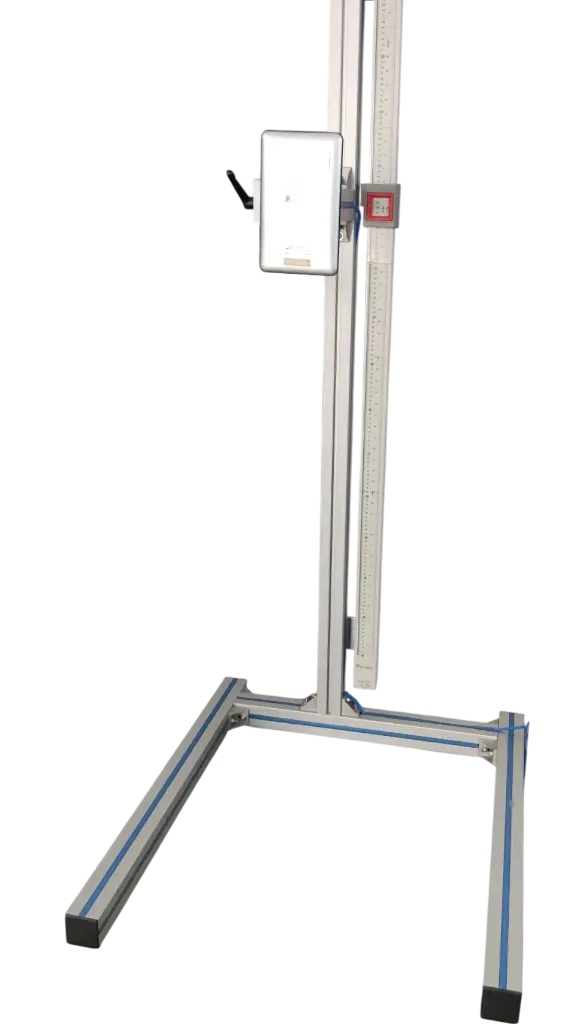

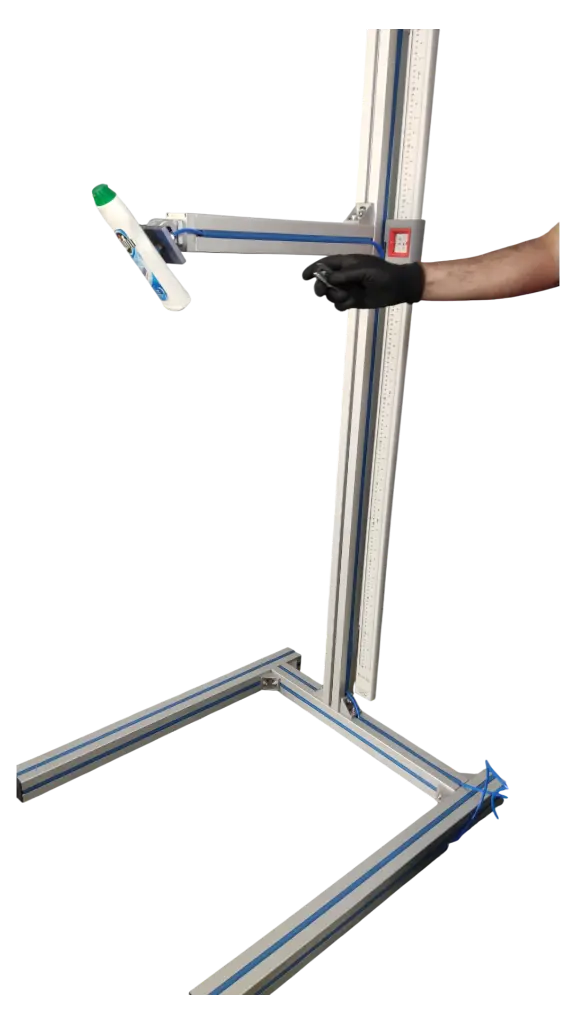

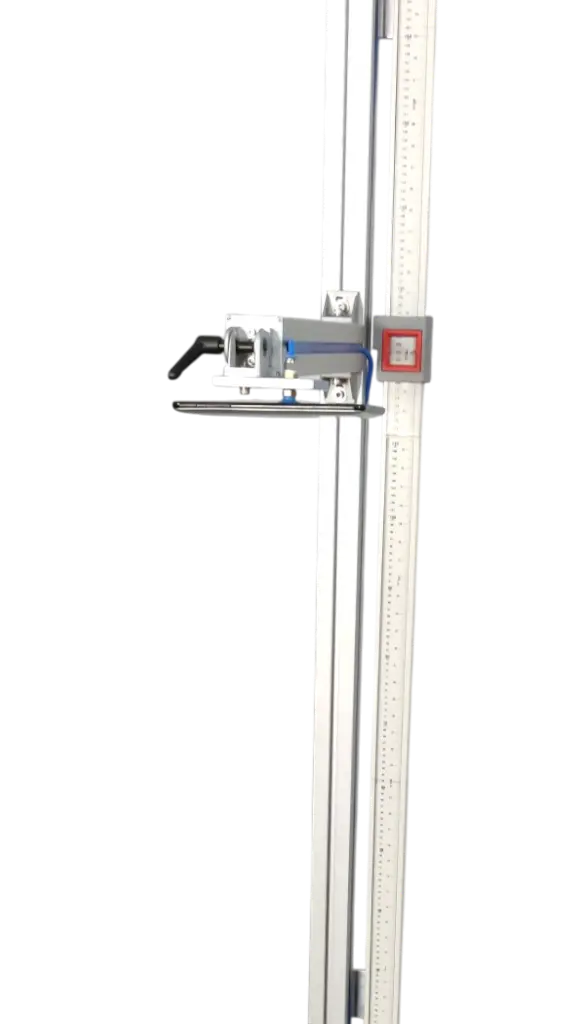

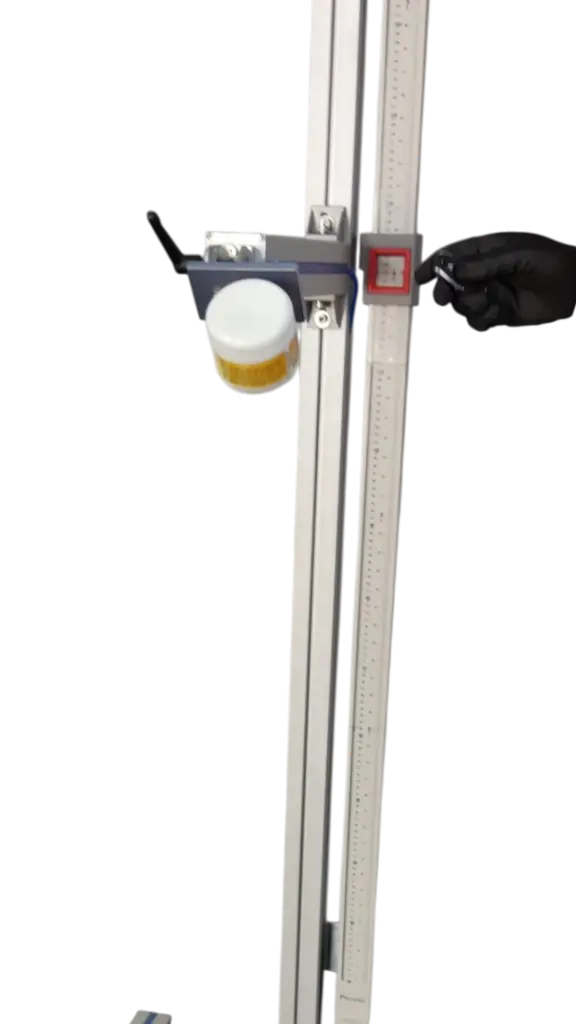

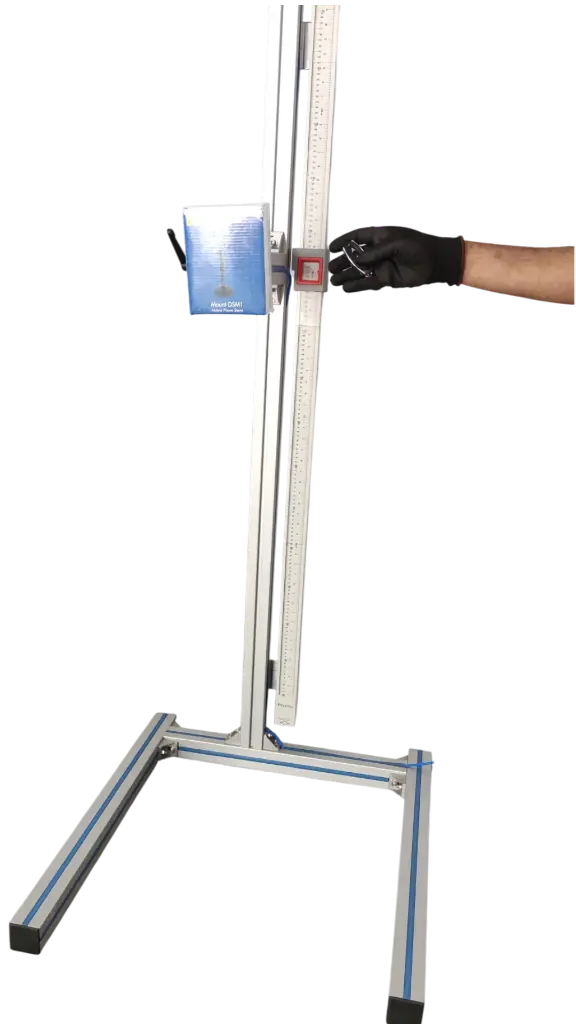

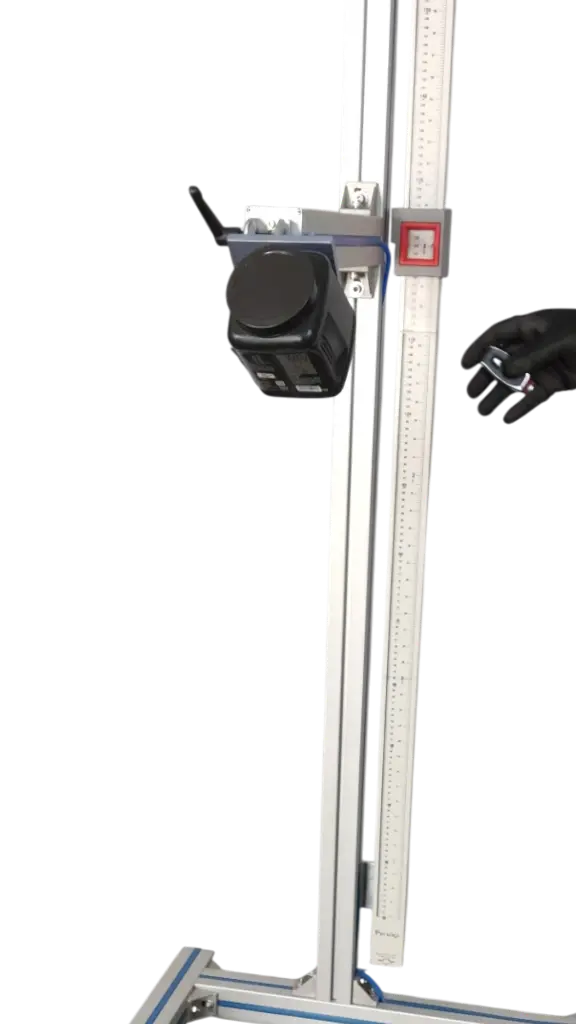

- Drop Orientations – The product / package is tested by dropping it on corners, edges, and flat surfaces.
- Impact Analysis – Measures structural integrity and potential damage to the product or its packaging.
- Repeated Drops – Some tests involve multiple drops to simulate rough handling.

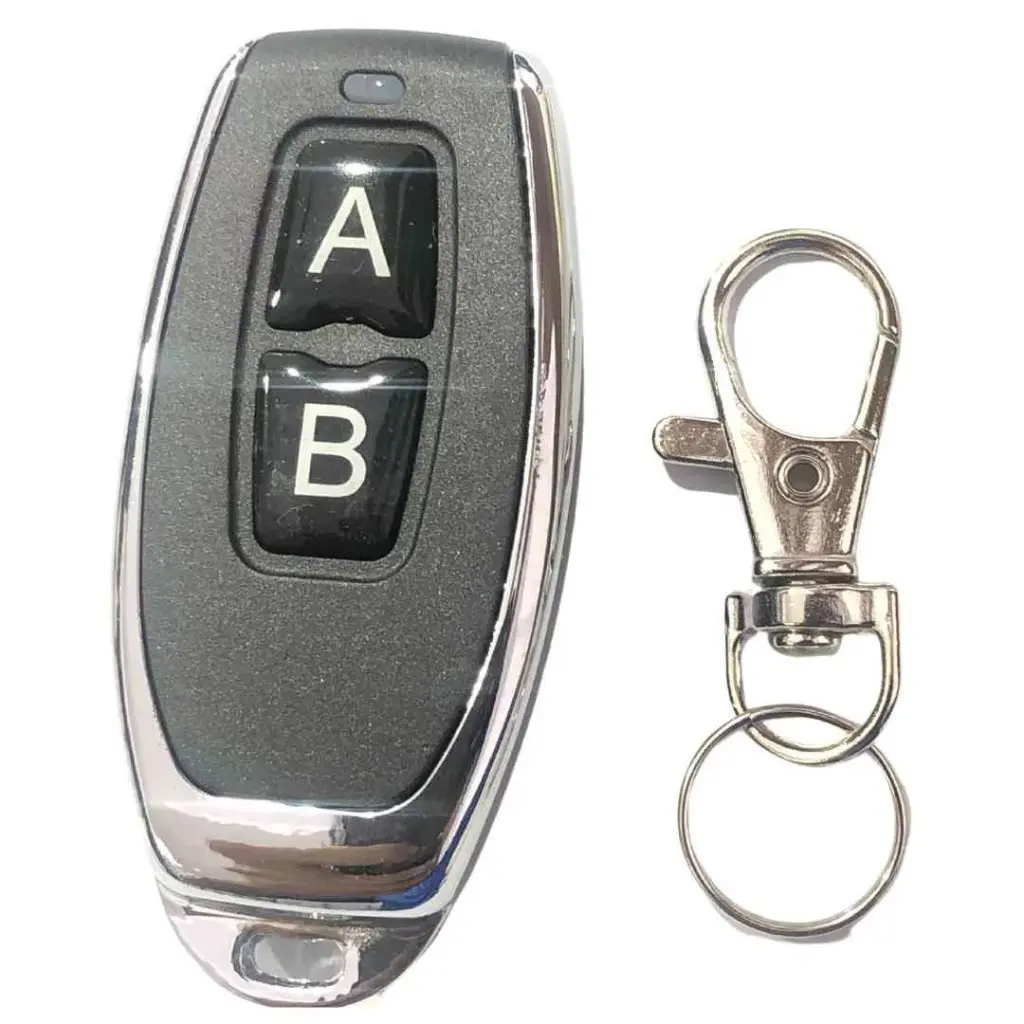

- Easy Usage – The equipment is supplied with a remote controlled vacuum pump and suction pad to test small items with a smooth surface. (Rough or uneven surface prducts and very small or larger products cannot be tested).
Mini Package Drop Tester
Imagine, your product is sitting on a supermarket shelf and a customer grabs it with his hand and it slips by mistake.
The product falls on the floor.
Will it break ? Will it leak ?
This can be predicted by a simple but helpful, drop test.
Models Available
Model
MDT-1
MDT-2
Max weight of product :
500 grams (1 lb)
1000 grams (2 lbs)
Hold / Release Mechanism :
Vacuum Hold using Inbuilt Vacuum Pump.
Wireless Remote Release.
Vacuum Hold using Inbuilt Vacuum Pump.
Wireless Remote Release.
Minimum Drop Height :
500 mm
500 mm
Maximum Drop Height :
2000 mm
2000 mm
Drop Surface :
Floor
Floor
Utilities Required :
- Power Supply (Current : Max 5 Amps) :
- For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
- For Outside India (Export Model) : As per your country’s power rating.
Warranty : 12 Months (Back-to-Bench)
