GSM Tester
A GSM tester is used to measure the grammage or weight of paper, film, foil, and other sheet materials. It helps determine the material's density and quality, ensuring consistency in production.
Background / Principle :
The weight (in grams) of a substrate of 1 sq. Mtr area is its GSM (Grams per Sq. Mtr)
Hence, the simplest method of GSM measurement is to cut a square piece of 1 meter x 1 meter and take its actual weight.
However, many times it is neither possible nor feasible to prepare and weigh such a large sample size. Hence the second best method of GSM measurement is to weigh a smaller sample (of known area) and multiply the reading by a suitable factor to give you the GSM.
Hence a GSM Tester is a combination of a Stainless Steel Template (of known / size area) and an accurate weighing instrument (standard digital balance)
Paper GSM Tester / Grammage Tester
Specifications / Features :
Standard Model : (Model : GX2)
- Range 0 – 30,000 GSM (300 gm weighing balance with 0.01 gm resolution)
- For use with 10 x 10cm Template
- Accuracy 1 gsm. No complex calculations.
- With Auto-calibration facility.
- Dual Power Mode (Battery and AC Adapter)
- Calibration Weight Provided for Instant Calibration.
- Integrated / Removable Acrylic Windshield.
- Round Cutter available (Optional)
Note : The weighing balance is a standard type weight balance. It will show readings in grams only. GSM is a Calculation derived from the weight measured. The balance will NOT display GSM directly.
Note : The calibration weight provided with the equipment is not supplied with a separate calibration certificate. If needed, you can get it calibrated with any local agency in your city.
GSM Testing Kit includes :

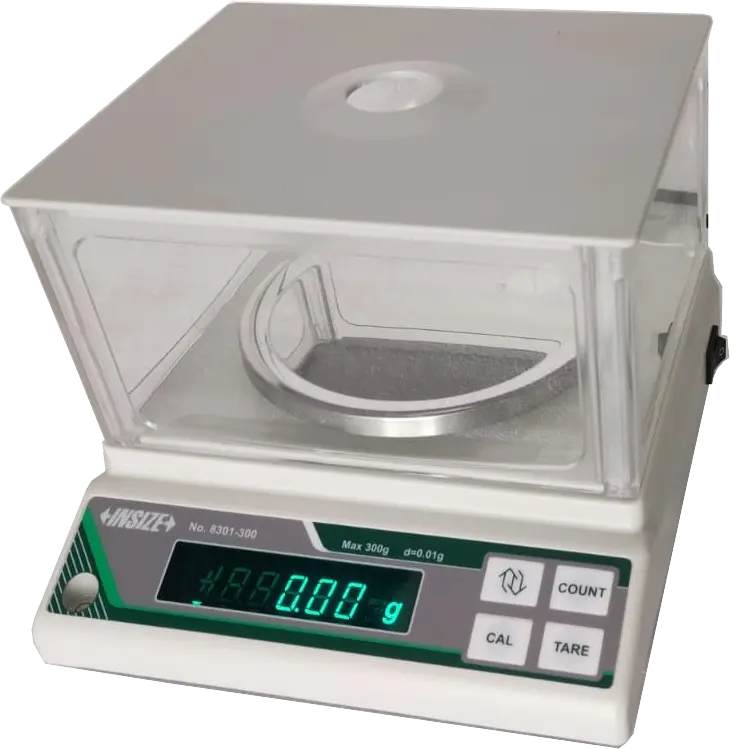

Digital Balance
(300gm)
Stainless Steel Template
(10x10 cm)

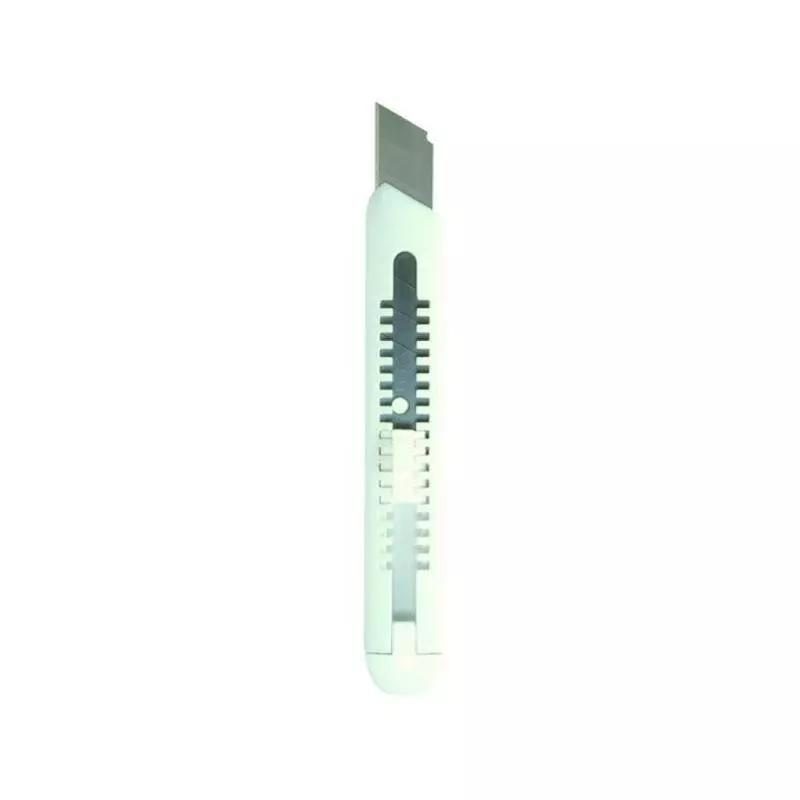

Paper Cutter Knife
Calibration Weight
(200 gm)
Included with all models / SKUs :
- Digital Balance of 300gm capacity and 0.01gm resolution.
- Calibration Weight.
- 10x10cm SS Template.
- Paper Cutter Knife.
- DQ/IQ/OQ Documentation are supplied with certain SKUs for Pharmaceutical Industry use.
Excluded ( Optional ) :
- Round Cutter for 100cm2 circular sample cutting.
Utilities Required :
- Power Supply (Current : Max 5 Amps) :
-
- For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
- For Outside India (Export Model) : As per your country’s power rating.
-
Warranty : 12 Months (Back-to-Bench)
