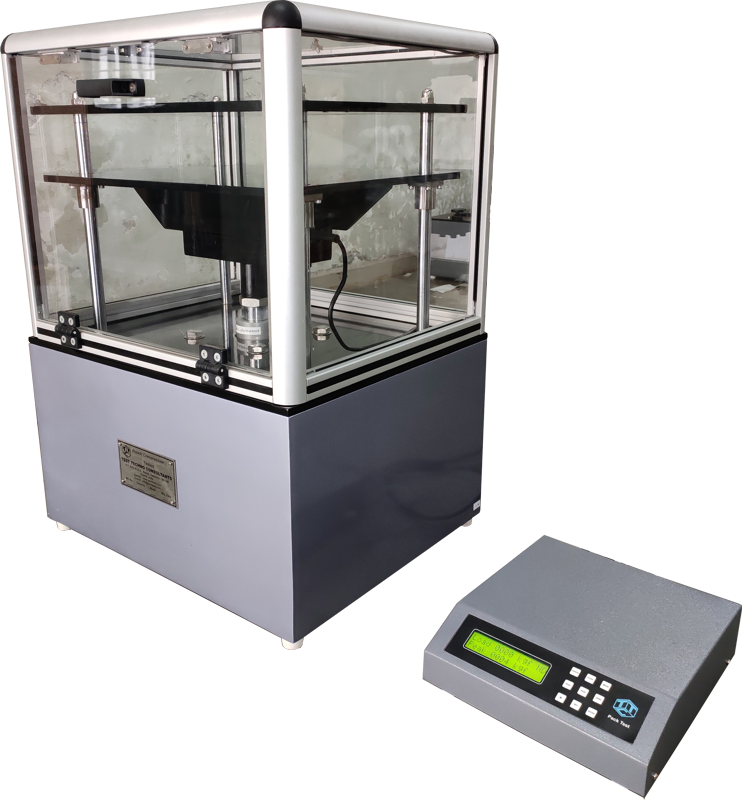

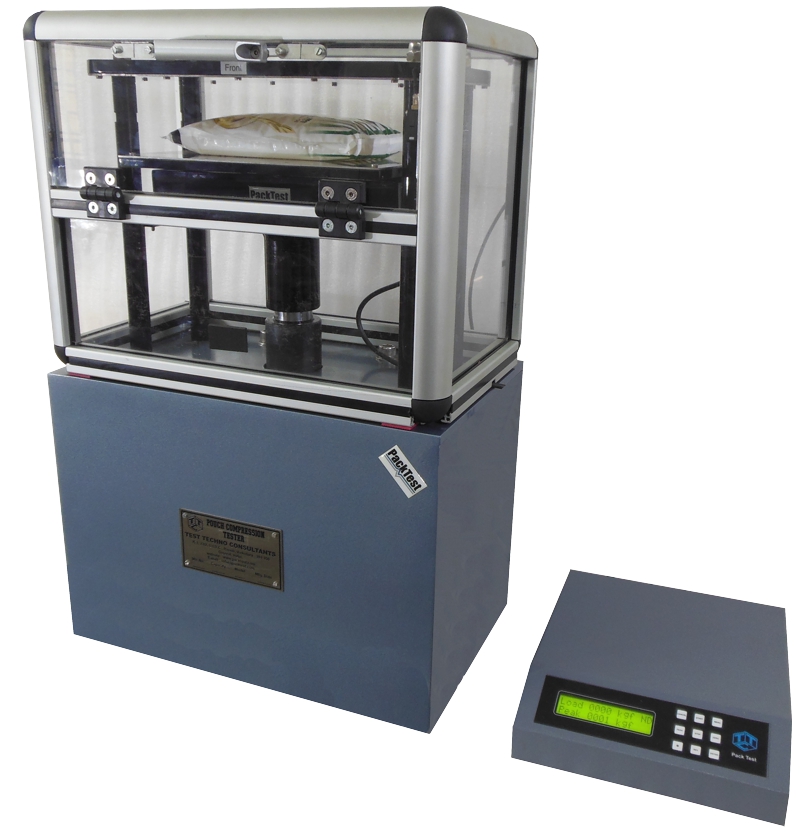

A pouch compression tester is a specialized device used to evaluate the seal integrity and burst strength of liquid or paste-filled pouches when subjected to external compressive force.

  • Dynamic Load Test (Destructive Mode): Applies increasing force until the pouch ruptures, measuring the maximum compression force required.
  • Static Load Test (Non-Destructive Mode): Compresses the pouch up to a preset force and holds it for a set duration to assess seal durability.
Confirm to : Canadian Food Inspection Agency guidelines.
Lead Time : 6-8 weeks
SKU: N/A Categories: , , , , , , , , , , ,

Pouch Compression Tester

Suitable to test Liquid Filled pouches for :

1) Dynamic Load Test  (Destructive Mode)

Test Type : Press till failure

In this method, the sample is compressed with increasing force untill the pouch bursts.



2) Static Load Test (Non-Destructive Mode)

(Also known as : Pressure Decay Test)

Test Type : Press till Load Setpoint. Hold till Time Setpoint.

In this method, the sample is compressed upto the Load setpoint pre-set by the user. The applied force is held on the pouch for some time (pre-set by the user). After the times elapses, the machine automatically returns to the original position. However If the pouch bursts before the set-point is achieved, then this becomes a destructive test. The machine automatically stops on sample failure or when the preset-load-time is achieved, whichever is earlier.

Technical Specifications :

  • Digital Model with Backlit LCD Display
  • Safety Shield Cabinet with interlock. Machine will not operate if safety shield door is open.
  • Electro-Pneumatic Model (Runs on Compressed Air)
  • Auto-stop upon completion of Test.
  • Testing Principle : Constant Rate of Loading
  • Optional facility to capture test data on to the PC directly through the software and generate PDF test & calibration reports.
  • Peak hold facility for registration of maximum compression force.
  • Auto-Calibration facility for user-friendly calibration.
  • Choice of Measurement units : Kgf / Lbf / N (User settable from Menu)

Safety Features :

Safety Shield Cabinet with Interlock

  • A cabinet will enclose the moving part of the machine.
  • All sides of the cabinet will have transparent Acrylic for natural illumination / visibility.
  • The front door will have a magnetic latch with a microswitch / magnetic reed switch.
  • Sample can be placed or removed by opening the front safety door.
  • If the door is not closed completely, the machine will NOT START.
  • If someone opens the door in the middle of the test sequence, the machine will stop and reverse automatically.

Note : The Static Load Test is done as per test specifications detailed in point # 4.1.2 of Chapter 4 of the “Flexible Retort Pouch Defects – Identification & Classification” by the Canadian Food Inspection Agency.

As per Canadian Food Inspection Agency, retort pouches should comply with the static load burst test. You will have to press the pouch with a force of 7.5 kg per 15mm of inner seal perimeter and hold this force for 15 seconds. If the pouch leaks or bursts or even if the seals show signs of stress during this period, the batch is considered failed.

Models Available

Model

P500

P1000

P1500

Capacity :

500 Kgf
4900 N
1100 lbf
1000 Kgf
9800 N
2200 Lbf
1500 Kgf
14700 N
3300 Lbf

Working Range :

10 – 100 % of Cap.
50 – 500 Kgf
490 – 4900 N
110 – 1100 Lbf
10 – 100 % of Cap.
100 – 1000 Kgf
980 – 9800 N
220 – 2200 Lbf
10 – 100 % of Cap.
150 – 1500 Kgf
1470 – 14700 N
330 – 3300 Lbf

Least Count :

0.5 Kgf
5 N
1 Lbf
1 Kgf
10 N
2 Lbf
1 Kgf
10 N
2 Lbf

Accuracy :

0.2% of Cap.
10 Kgf
100 N
20 Lbf
0.2% of Cap.
20 Kgf
200 N
40 Lbf
0.2% of Cap.
30 Kgf
300 N
60 Lbf

Calibration Weight Required :

50 Kgs
(20 + 20 + 10)
100 Kgs
(20 kg x 5 pcs)
100 Kgs
(20 kg x 5 pcs)

Platform Size :

  1. Small :
    • 200x200mm
    • 8x8 inch
  2. Large :
    • 400x400mm
    • 16x16 inch
  1. Medium :
    • 300x200mm
    • 12x8 inch
  2. Large :
    • 400x400mm
    • 16x16 inch
  1. Large :
    • 400x400mm
    • 16x16 inch

Software Options :

  1. No Software
  2. Regular Software
  3. 21-CFR-11 Compliant Software
  1. No Software
  2. Regular Software
  3. 21-CFR-11 Compliant Software
  1. No Software
  2. Regular Software
  3. 21-CFR-11 Compliant Software

Included with all models / SKUs :

    1. Basic Machine
    2. Air Filter + Pressure Regulator
    3. PU tubings for air supply connection.
    4. Zip-Lock pouches for sample spill containment.
    5. RS-232 Data Cable with USB-Serial Convertor are supplied with SKUs with software option.
    6. DQ/IQ/OQ Documentation are supplied with certain SKUs for Pharmaceutical Industry use.

    Excluded ( to buy separately ) :

      1. Zip-Lock pouches for spill containment during regular testing (consumable item)

      Utilities Require​d :

      1. Power Supply (Current : Max 5 Amps) :
        • For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
        • For Outside India (Export Model) : As per your country’s power rating.
      2. Compressed Air @ 6 bar (87 psi)
      3. For SKUs with Software Option : Desktop / Laptop PC (Intel Core i3, 4gb RAM, Win10 OS, 1080p Monitor) or higher.

      Warranty : 12 Months (Back-to-Bench)
