Description

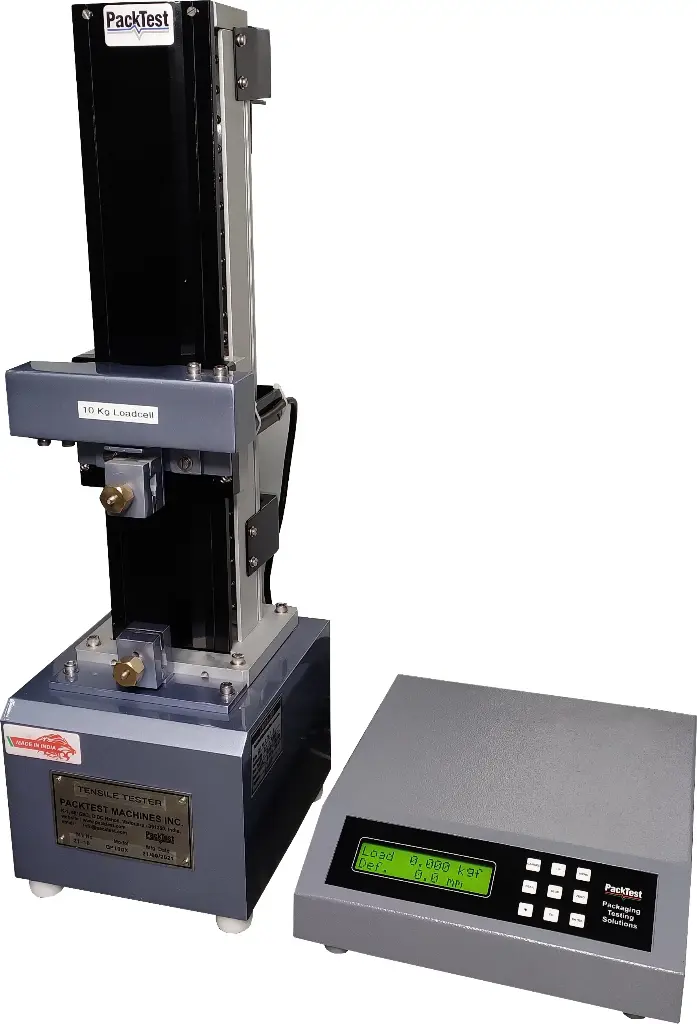

Seal Strength Tester               S10 Series

The Seal Strength Tester is an instrument designed to test :

1. Seal Strength of Heat Seal Joints of Pouches

Can also be used with restricted functionality to test :

1. Lamination Peel Strength
2. Tensile Strength (Breaking Load)
3. Elongation @ Breaking Load

Technical Specifications of Seal Strength Tester:

• Digital Model with Backlit LCD Display
• Capture test data on to the PC directly through the software and generate PDF test & calibration reports.
• Fixed Testing Fixtures (Tensile Grips).
• Peak hold facility for maximum load and deflection
• Auto-Calibration facility for user-friendly calibration.
• Choice of Measurement units : Kgf / gf / Lbf / N (User settable from Menu)
• Actuator Length : 350mm (Usable Stroke : 200mm)

Capacity :                    10                    Kgf       (~ 100 N)

Working Range :         0.5 – 10            Kgf       (~ 5 – 100 N)

Least count :               0.001               Kgf       (0.01 N)

Accuracy :                   0.020               Kgf       (0.20 N)           (0.2% of Capacity)

Included with all models / SKUs :

1. Basic Machine with Fixed Tensile Grips.
2. Calibration Weight with Hook.

DQ/IQ/OQ Documentation are supplied with certain models.

RS-232 Data Cable with USB-Serial Convertor are supplied with all models / SKUs.

Software Options :

• Regular Software (Not 21-CFR-11 Compliant)
• 21-CFR-11 Compliant Software (Vantage).

Warranty :                  12 Months (Ex-Factory)

Utilities Required :

1. Power Supply (Current : Max 5 Amps) :
   • For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
   • For Outside India (Export Model) : As per your country’s power rating.
2. Desktop / Laptop PC (Intel Core i3, 4gb RAM, Win10 OS, 1080p Monitor) or higher.
