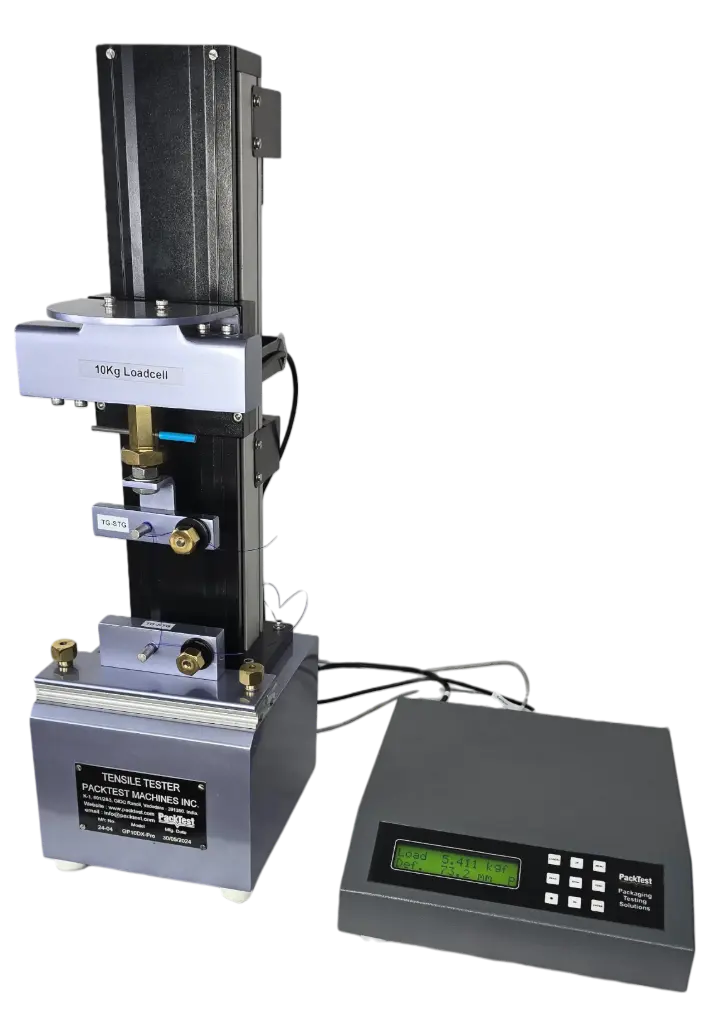

Suture Tensile Tester

The Suture Tensile Tester is a multifunctional, high-precision device intended to assess the mechanical strength and integrity of medical and surgical sutures. It conducts tests such as Suture Breaking Load, Elongation at Break, Suture-Needle Detachment (De-Swagging), and an optional Pouch Seal Strength Test.

Ideal for medical device manufacturers, quality control labs, and R&D teams working with absorbable or non-absorbable sutures.

Included :

  1. Suture Thread Grip Set.
  2. Suture Needle Grip.

Not - Included :

  1. Seal Strength Test Fixture (TF-TEN-TG-SK or TF-TEN-TG-DK)

Standards: USP 881 / ASTM F88

Lead Time : 8 weeks

SKU: N/A Categories: , , ,

Suggested Accessories / Test Fixtures :

You may also like…

Suture Tensile Tester

This is multi-purpose instrument designed to perform the following using standard (included) test fixtures: :

  1. Suture Breaking Load – Measures the tensile strength of sutures to determine how much force they can withstand before breaking.
  2. Elongation at Break – Assesses  how much the suture stretches before it snaps.
  3. Suture-Needle Detachment (De-Swagging) – Tests the bond strength between the suture and its attached needle.

It can also perform the following tests using optional (extra) test fixtures:

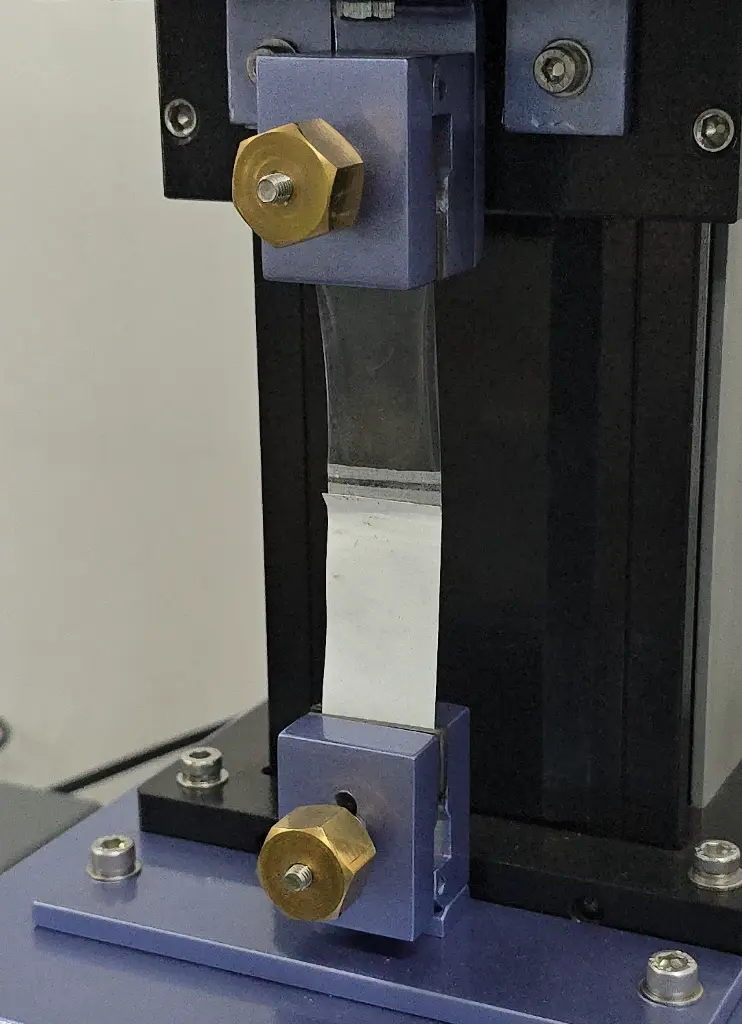

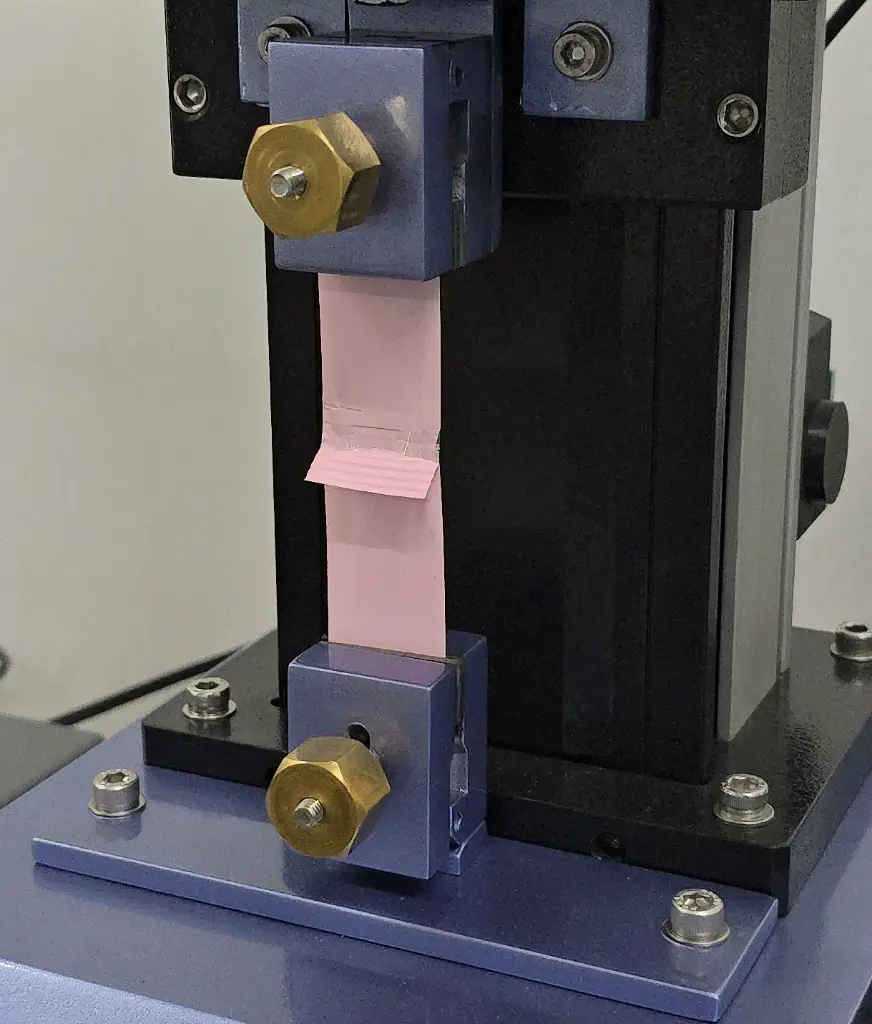

  1. Seal Strength Testing – Evaluates the integrity of heat-sealed pouch joints (Aluminum Pouches or Paper-Poly Pouches).

Technical Specifications :

  • Digital Model with Backlit LCD Display
  • Capture test data on to the PC directly through the software.
  • Generate PDF test & calibration reports.
  • Inter-Changeable Testing Fixtures.
  • Peak hold facility for maximum load and deflection
  • Auto-Calibration facility for user-friendly calibration.
  • Choice of Measurement units : Kgf / gf / Lbf / N (User settable from Menu)

Actuator Stroke (Without Fixtures) : 350 mm (~ 14 inch)
Usable Stroke (With basic grips) :     ~ 200 mm (~ 8 inch)

Models Available

Model

G10

G20

Capacity :

10 Kgf
10000 gf
98 N
22 lbf
20 Kgf
20000 gf
196 N
44 lbf

Working Range :

5 – 100 % of Capacity.
0.5 – 10 Kgf
500 – 10000 gf
4.9 – 98 N
1.1 – 22 lbf
5 – 100 % of Capacity.
1 – 20 Kgf
1000 – 20000 gf
9.8 – 196 N
2.2 – 44 lbf

Least Count :

0.001 Kgf
1 gf
0.01 N
0.002 lbf
0.002 Kgf
2 gf
0.02 N
0.004 lbf

Accuracy :

0.2 % of Capacity.
0.02 Kgf
20 gf
0.196 N
0.044 lbf
0.2 % of Capacity.
0.04 Kgf
40 gf
0.392 N
0.088 lbf

Included with all models / SKUs :

    1. Basic Machine.
    2. Suture Thread Grip Set (Set of Top + Bottom Grip) to hold the suture thread for Breaking Load & Elongation Test.
    3. Suture Needle Grip (Top Grip Only) for Needle-Suture Detachment Test / De-Swaging Test.
    4. Calibration Weight with Hook.
    5. RS-232 Data Cable with USB-Serial Convertor are supplied with all models / SKUs.
    6. DQ/IQ/OQ Documentation are supplied with all models.

    Excluded ( to buy separately ) :

      1. Seal Strength Test Fixture (TF-TEN-TG-SK or TF-TEN-TG-DK)

      Software Options :

      1. Regular Software (Not 21-CFR-11 Compliant)
      2. 21-CFR-11 Compliant Software (Vantage).

      Click here for detailed feature comparison of Regular vs 21-CFR-11 Compliant Software

      Utilities Require​d :

      1. Power Supply (Current : Max 5 Amps) :
        • For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
        • For Outside India (Export Model) : As per your country’s power rating.
      2. Desktop / Laptop PC (Intel Core i3, 4gb RAM, Win10 OS, 1080p Monitor) or higher.

      Warranty : 12 Months (Back-to-Bench)
