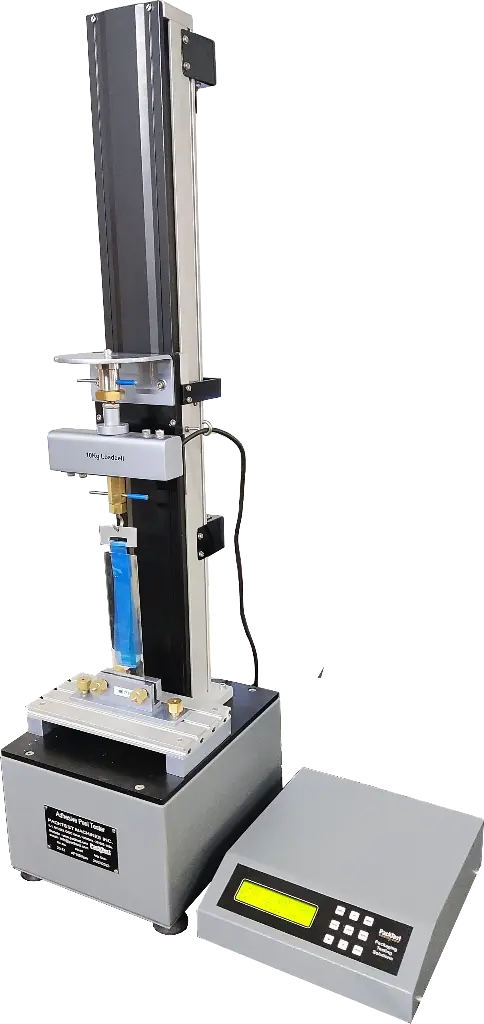

Tensile Strength Tester

Tensile Strength Tester is a multi-purpose instrument designed to test :

  1. Tensile Strength (Breaking Load)
  2. Elongation @ Breaking Load
  3. Seal Strength Test of Heat Seal Joints of Pouches
  4. Lamination Peel Test
  5. Coefficient of Friction (COF) Test on Paper / Plastic Films
  6. Medical Suture Test :
    • Suture Breaking Load
    • Suture-Needle Detatchment / De-Swagging

Confirms to : ASTM D882 / ASTM F904 / ASTM F88 / ASTM D1894 / TAPPI T549

Select from below options to generate the correct product code (SKU) and click on “Request for Quote” to send us an enqu

Description

Tensile Strength Tester (G Series)

Tensile Strength Tester is multi-purpose instrument designed to test :

  1. Tensile Strength (Breaking Load)
  2. Elongation @ Breaking Load
  3. Seal Strength Test of Heat Seal Joints of Pouches
  4. Lamination Peel Test
  5. Coefficient of Friction (COF) Test on Paper / Plastic Films
  6. Medical Suture Test :
    • Suture Breaking Load
    • Suture-Needle Detatchment / De-Swagging

Technical Specifications of Tensile Strength Tester :

  • Digital Model with Backlit LCD Display
  • Capture test data on to the PC directly through the software and generate PDF test & calibration reports.
  • Inter-Changeable Testing Fixtures.
  • Peak hold facility for maximum load and deflection
  • Auto-Calibration facility for user-friendly calibration.
  • Choice of Measurement units : Kgf / gf / Lbf / N (User settable from Menu)

 Included with all models / SKUs :

  1. Basic Machine with Mounts for Testing Fixtures.
  2. Calibration Weight with Hook.

Excludes : Testing Fixtures (To be ordered separately)

DQ/IQ/OQ Documentation are supplied with certain models.

RS-232 Data Cable with USB-Serial Convertor are supplied with all models / SKUs.

Software Options for Tensile Strength Tester:

  • Regular Software (Not 21-CFR-11 Compliant)
  • 21-CFR-11 Compliant Software (Vantage).

Warranty :                  12 Months (Ex-Factory)

Utilities Required :

  1. Power Supply (Current : Max 5 Amps) :
    • For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
    • For Outside India (Export Model) : As per your country’s power rating.
  2. Desktop / Laptop PC (Intel Core i3, 4gb RAM, Win10 OS, 1080p Monitor) or higher.

Loadcell Capacity Options for Tensile Strength Tester :

Loadcell Unit 10 20
Capacity : Kgf

gf

N

Lbf

10

10000

98

22

20

20000

196

44

Working Range : % of Capacity.

Kgf

gf

N

Lbf

0.5 – 100

0.05 – 10

50 – 10000

0.49 – 98

0.11 – 22

0.5 – 100

0.1 – 20

100 – 20000

0.98 – 196

0.22 – 44

Least Count : Kgf

gf

N

Lbf

0.001

1

0.1

0.002

0.002

2

0.2

0.004

Accuracy : % of Capacity.

Kgf

gf

N

Lbf

0.2%

0.02

20

0.196

0.044

0.2%

0.04

40

0.392

0.088

Stroke Length Options for Tensile Strength Tester :

Actuator Type 350 500 750 1000 1250
Actuator Stroke :

(Without Fixtures)

350 mm

~ 14 inch

500 mm

~ 20 inch

750 mm

~ 30 inch

1000 mm

~ 40 inch

1250 mm

~ 50 inch

Usable Stroke :

(With basic grips)

~ 200 mm

~ 8 inch

~ 350 mm

~ 14 inch

~ 600 mm

~ 24 inch

~ 850 mm

~ 34 inch

~ 1100 mm

~ 44 inch

Test Fixture Options :

Below Fixtures are optional and need to be ordered separately with the Tensile Strength Tester.

Sr Item Name (SKU) Description
1 TG-SK

(TF-TG-SK)

Tensile Grip – Single Knob Type.

Set of Top + Bottom Grip.

for Laminate Peel / Seal / Tensile Strength

for Thin flexible material.

Max Load : 8 Kgf (~80 N) force.

Not suitable for thick or high strength materials

2 TG-DK

(TF-TG-DK)

Tensile Grip – Double Knob Type.

Set of Top + Bottom Grip.

for Laminate Peel / Seal / Tensile Strength

for Thin or Thick material.

Max Load : 20 Kgf (~200 N) force.

3 TG-COF

(TF-TG-COF)

COF Test Attachment (Includes Base + Force Diversion Pulley + 200gm Sled + ASTM compliant SS Test Panel + Clips + Pull Cord)
4 TG-STG

(TF-TG-STG)

Suture Thread Grip

Set of Top + Bottom Grip.

for Tensile Strength / Breaking Load Test of Surgical Sutures.

Max Load : 20 Kgf (~200 N) force.

5 TG-SNG

(TF-TG-SNG)

Suture Needle Grip (Top Grip only, to hold the Needle)

for Suture-Needle Detachment Test / De-Swaging Test.

Max Load : 20 Kgf (~200 N) force.

Download Tensile Strength Tester Datasheet

Additional information

Region

India, Outside India

Industry

FMCG / Food / Beverage (Non-Pharma), Pharmaceutical

Series

G

Capacity

10 Kgf / 20 Lbf / 100 N, 20 Kgf / 40 Lbf / 200 N

Actuator Length

350 mm, 500 mm, 750 mm, 1000 mm, 1250 mm

Software

Regular Software (Not 21-CFR-11 Compliant), 21-CFR-11 Compliant Software
