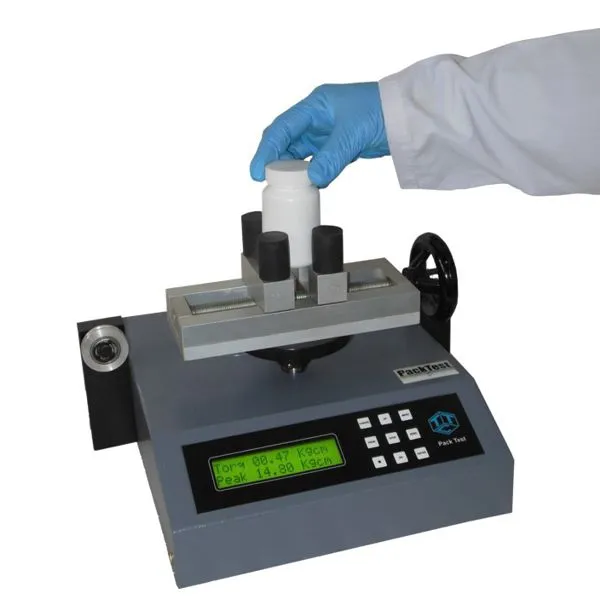

Torque Tester

This equipment is suitable to measure :
Opening & Closing Torque of regular Screwed Closures.
Opening & Closing Torque of Push-n-Twist (Child Resistant) Closures.
Hinge-Twist test on Flip Top Caps.

PackTest Product Video on Youtube          Download PDF Catalog - PackTest

Clear

Description

For more information on the Bottle / Closure Torque Tester, please see the Model Tabs on the Right

Additional information

Model

M50 (without software), M50R (with software)

Model # M50

Torque Tester          (Model # M50)
Digital Model with Manual Opening of Sample.
with Backlit LCD Display for easy readability.

Suitable to test :
– Opening & Closing Torque of regular Screwed Closures.
– Opening & Closing Torque of Push-n-Twist (Child Resistant) Closures.
– Hinge-Twist test on Flip Top Caps.

With Universal Grip to enable hold bottle samples 25 – 125mm OD. (Larger grips options are also available).
Peak hold facility for registration of maximum closing / opening torque.
Auto-Calibration facility for user-friendly calibration at site.

Capacity :        0 – 50 Kgcm / 43 Lbin / 5 Nm
Least count :   0.01 Kgcm / 0.01 Lbin / 0.001 Nm
Accuracy :      0.5% of capacity.
Choice of Measurement units : Kgcm / Lbin / Nm / Ncm     (User settable from Menu)

Includes :
1) Basic Machine
2) Calibration Kit with Pan

Excludes :
1) Calibration weights (0.5 + 0.5 + 1 + 1 Kg = Total 3 Kg)

Optional :
Addon Fixture for Small Dia bottles (10-25mm)
Addon Fixture for Large Dia bottles (125-200 mm)
Squeeze Tube Mandrels / Inserts
Individual mandrels are required for every specific Inner Diameter
Please specify diameter of the tube while ordering.
Suitable for testing of Laminated / Co-Extruded / Aluminum Collapsible Tubes.

Utilities Required :

  1. Power : 230/110 Volts A.C., 50/60 Hz. Clean power.
  2. Calibration weights : 3 Kg (5 + 0.5 + 1 + 1 Kg)

IQOQ Documentation Set available for Pharmaceutical companies

Model # M50R

Torque Tester          (Model # M50R)  With PC Software
Digital Model with Manual Opening of Sample.
with Backlit LCD Display for easy readability.

Suitable to test :
– Opening & Closing Torque of regular Screwed Closures.
– Opening & Closing Torque of Push-n-Twist (Child Resistant) Closures.
– Hinge-Twist test on Flip Top Caps.

With Universal Grip to enable hold bottle samples 25 – 125mm OD. (Larger grips options are also available).
Peak hold facility for registration of maximum closing / opening torque.
Auto-Calibration facility for user-friendly calibration at site.

Capacity :        0 – 50 Kgcm / 43 Lbin / 5 Nm
Least count :   0.01 Kgcm / 0.01 Lbin / 0.001 Nm
Accuracy :      0.5% of capacity.
Choice of Measurement units : Kgcm / Lbin / Nm / Ncm     (User settable from Menu)

Data Transfer Feature :

  • TorqueView Software

Advanced software for professional grade reporting in PDF format.
Contains multiple User-Input Fields
Test Report will contain up to 20 test results and statistical analysis (Max, Min, Avg)
Does NOT Need Microsoft Office.
Direct PDF output. Only Adobe Acrobat Reader (free) is required on the PC.
Software can even be customized as per your requirement for an extra charge.

Note : The Software is not fully 21-CFR-11 compliant.

Existing Security Features of the current software version:

  • 8 User Logins + 1 Admin Login.
  • Only admin can add/delete users and change passwords.
  • All users have individual Full Name, Username and Password.
  • Full Name of the user (Digital Signature) is pasted on the Test Report automatically.
  • Test Data is compiled as a PDF Test Report and no raw data is saved on the PC.

Includes :
1) Basic Machine
2) Calibration Kit with Pan
3) Data Cable
4) Windows 7 PC Software (partially 21-CFR-11 compliant).

Excludes :
1) Calibration weights (0.5 + 0.5 + 1 + 1 Kg = Total 3 Kg)

Optional :
Addon Fixture for Small Dia bottles (10-25mm)
Addon Fixture for Large Dia bottles (125-200 mm)
Squeeze Tube Mandrels / Inserts
Individual mandrels are required for every specific Inner Diameter
Please specify diameter of the tube while ordering.
Suitable for testing of Laminated / Co-Extruded / Aluminum Collapsible Tubes.

Utilities Required :

  1. Power : 230/110 Volts A.C., 50/60 Hz. Clean power.
  2. Calibration weights : 3 Kg (5 + 0.5 + 1 + 1 Kg)
  3. Desktop PC or Laptop PC
    • Processor Type :   Intel Core I3 or better.            (Preferably Core I5 or Higher)
    • Memory :              4 GB RAM or better
    • Space :                  50 GB free HDD space           (minimum)
    • Monitor :               17” or Larger Color Monitor with 1280 x 1024 resolution or better
    • Operating System: Windows 7 Home Premium or higher (with latest updates & patches)
    • Supporting Software :
      • Adobe Acrobat Reader (Latest Version).
      • Microsoft Dot Net Framework (Latest Version)
    • Printer :  Laser or Inkjet Printer.           (No Dot-matrix support)

IQOQ Documentation Set available for Pharmaceutical companies
