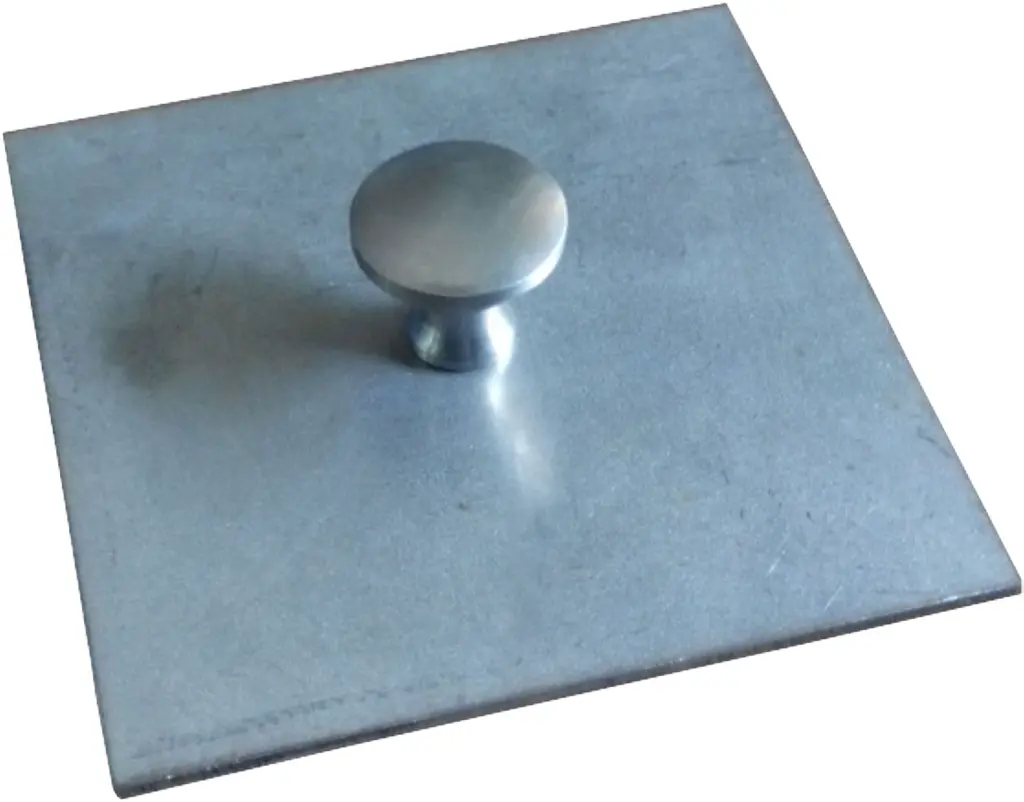

GSM Template

GSM Template / Stainless Steel Templates. (for GSM or other purposes)
Stainless Steel (SS 202 / 304, 2mm thickness)

Size :

  • 20 cm x 25 cm            = 500cm2 ± 2.5cm2   (±0.5%)
  • 10 cm x 10 cm            = 100cm2 ± 1.00cm2 (±1%)
  • 5 cm x 5 cm                = 25cm2 ± 0.50cm2   (±2%)

NABL Traceably COA / Test Certificate, is provided with each template.


GSM Template (Stainless Steel, 2mm thick)

A GSM (Grams per Square Meter) Template is used in the paper industry to measure the grammage of paper / paperboard sample.

Here’s how it typically works:

  1. Place the sample you want to measure on a a flat surface or cutting mat.
  2. Position the Template on the paper sample.
  3. Use a paper cutter knife to cut along the 4 sides of the template.
  4. Remove the cut paper sample.
  5. Weigh the cut sample on a precision scale.
  6. Calculate the GSM by multiplying the weight of the sample by an appropriate factor (depending upon the size).

The GSM template is a crucial tool for paper quality control and testing of paper / paperboard used in various applications.

Additional information


20 x 25 cm, 10 x 10 cm, 5 x 5 cm
