Universal Testing Machine (UTM)

Universal Testing Machine (UTM) is a Tabletop Equipment used to perform various Tensile and Compression Tests such as :

  • Compression Strength or Top Load Test Duplex board Cartons or Bottles
  • Capping and De-Capping Force Test of Snap-On Caps
  • Flip Opening and Closing Force of Flip-Top Caps
  • Laminate Peel Strength
  • Seal Strength Test
  • Tensile Strength / Breaking Load Test
  • Elongation Test
  • Coefficient of Friction (COF) Test.

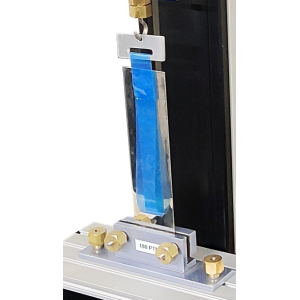

  • 180° and 90° Peel Strength of Adhesive Tapes / Labels
  • Loop Tack Test of Adhesive Tapes / Labels
  • Weld Strength or Head Bond Test of Lami-Tubes
  • Stiffness Test of Lami / CoEx Tubes.
  • RCT of Paper and ECT / FCT of Corrugated Board

Confirms to various TAPPI / ASTM / ISO / PSTC standards.

PackTest Product Video on Youtube          Download PDF Catalog - PackTest

Description

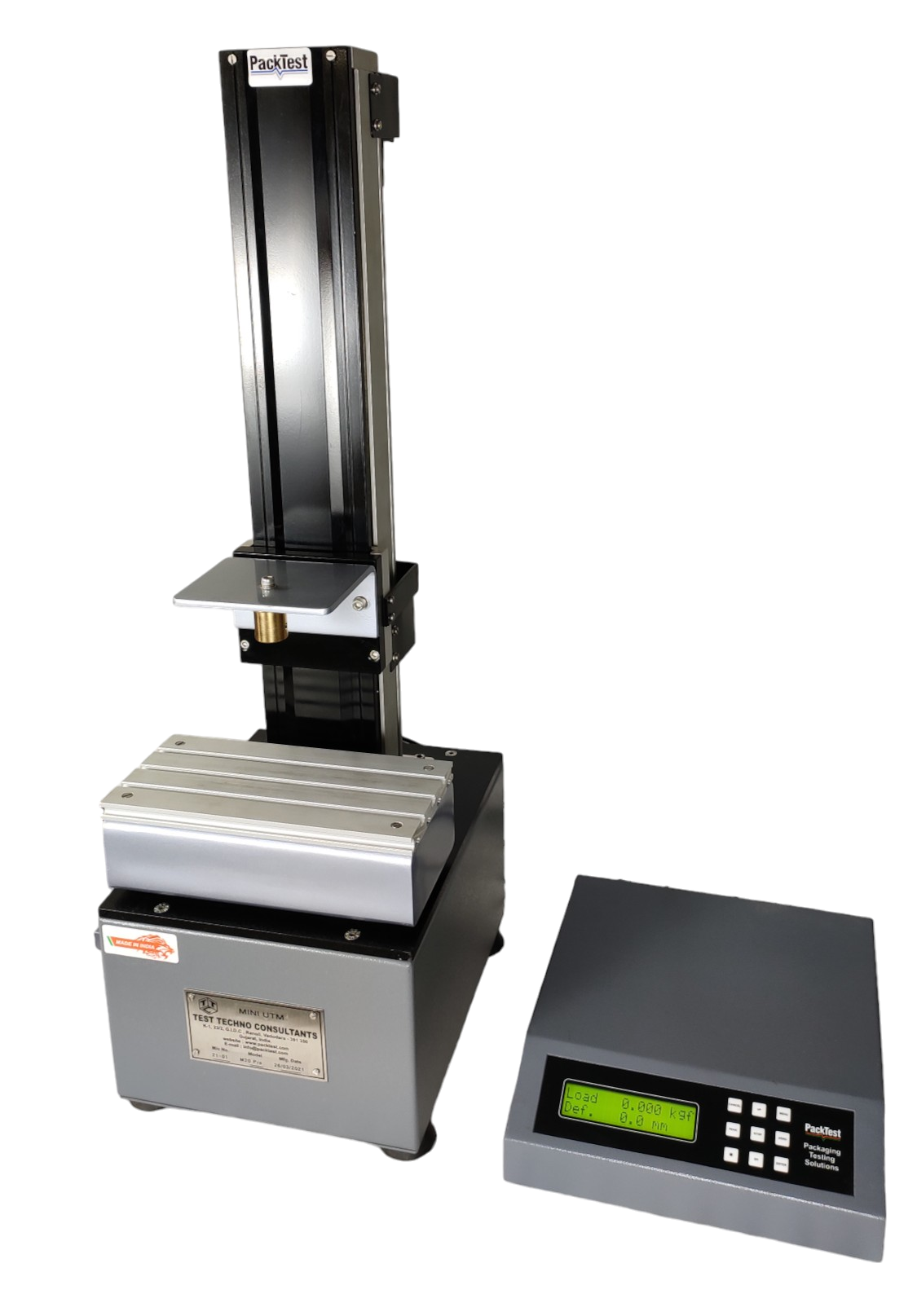

Universal Testing Machine ( UTM )

Computerised Model.
Variable Speed Model with Stepper Drive

Confirms to various TAPPI / ASTM / ISO / PSTC standards.

Models of Universal Testing Machine ( UTM ) :


M50-Pro
Machine Capacity :                50 Kg
Load Cell resolution :             0.005 Kg         (5 grams)


M100-Pro
Machine Capacity :                100 Kg
Load Cell resolution :             0.010 Kg         (10 grams)


M100-2X Pro
Machine Capacity :               Dual Range (with 2 Load Cells)

Load Cell 1 :               10 Kgf
Load Cell 2 :               100 Kg

Load Cell resolution :

Load Cell 1 :               1 g
Load Cell 2 :               10 g


Common Features of Universal Testing Machine (UTM):

Variable Test Speed :              10 – 500 mm/min
Max Travel Length :               300 mm. (Longer stroke models available).
Stepper Motor and Drive for speed variation over a large range (10-500 mm/min).
Microprocessor based controller with embedded Push Buttons on Control Panel.
Dual line, Backlit LCD display for stress free viewing.
Peak hold facility to register maximum reading during test.
Auto-stop facility on completion of test.                                (Menu setting)
Auto-stop facility on machine overload                                 (Over – Load Protection).
Auto-stop facility upon reaching top / bottom limits              (Over – Travel Protection)
Auto-Calibration facility using standard weights (to be supplied by buyer).
Full Controls via computer.
Test Report Printing Facility (with Load vs. Deflection Graph)
( Includes Software and Linking Hardware. PC & Printer to be provided by you. )

Testing Fixtures for Universal Testing Machine (UTM) :

Test Name :
Suitable For :
Fixture Description Fixture / Item Code :
Top Load Strength Test
Or Compression Test
For bottles and small duplex cartons

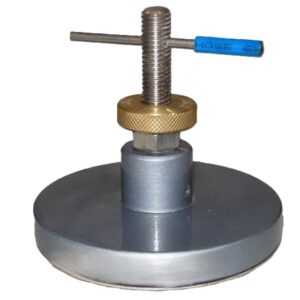

Compression Platen (Circular)
With 1 hole in center as air vent.
Platen Diameter  = 100mm
Max Neck Diameter = 90mm
Max Base Diameter = 150mm
Max Height =  300mm
CPC100
Top Load Strength Test
Or Compression Test
For bottles and large duplex cartons
Compression Platen (Rectangular)
With 1 hole in center as air vent.
Platen Size  = 150x300mm
Max Package Size = 145x295mm
Max Height = 300mm
CPR150x300
Weld Strength of Tube.
A.k.a. Head Bond Test (Helicopter)
For Laminated Squeeze Tubes and Seamless Squeeze Tubes.

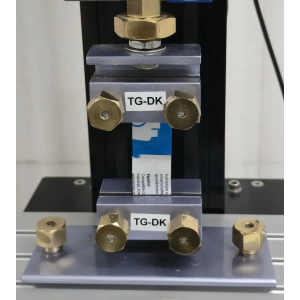

Tensile Grip (Double Knob Type)
(Set of 2 grip, 1 Top + 1 Bottom)
+
Splicing Jig
(separate for each dia tube)
TG-DK + SJ-XX(dia)
Lamination Strength
A.k.a. Inter Ply Bond Strength
For Plastic Film Laminates or Laminated Squeeze Tubes

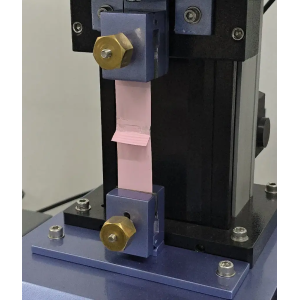

Tensile Grip (Single Knob Type)
(Set of 2 grip, 1 Top + 1 Bottom)
TG-SK
Seal Strength (Side)
A.k.a. Side Seam Strength
For Laminated Squeeze Tubes
Tensile Grip (Double Knob Type)
(Set of 2 grip, 1 Top + 1 Bottom)
TG-DK
Seal Strength (FFS)
For pouches and sachets
Tensile Grip (Double Knob Type)
(Set of 2 grip, 1 Top + 1 Bottom)
TG-DK

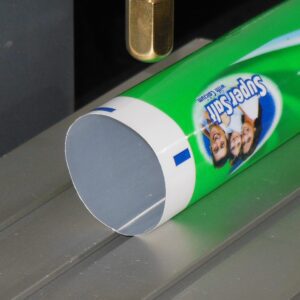

Stiffness of Empty Tube
For Laminated Squeeze Tubes and Seamless Squeeze Tubes.
Finger Probe (Rounded Tip)  FP-R

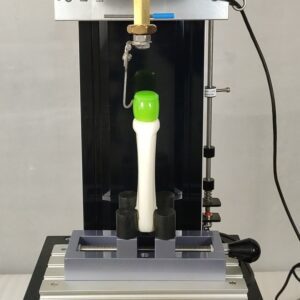

Flip Opening Force (Regular)
For Flip Top Caps on Bottles or Squeeze Tubes
Flip Top Pull Hook (Common)
+
Bottle / Tube Holder Grip
For 25-125mm dia samples
+
Squeeze Tube Mandrels / Inserts
(for every specific Inner Diameter)
FOF-R BTH-25-125 + STM
Flip Closing Force Finger Probe (Flat Tip) FP-F (Flat)
 Snap ON Force Compression Platen (Circular)
With 1 hole in center as air vent.
Platen Diameter  = 100mm
Max Neck Diameter = 90mm
Max Base Diameter = 150mm
Max Height =  300mm
CPC100
De-Capping Force De-Capping force attachment DCF-R

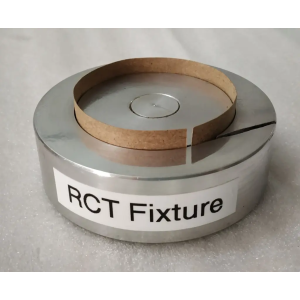

Ring Crush Test
For Paper
(Requires Compression Platen CPC100 or CPR150x300 as default)
RCT Sample Holder + 3 Discs.
+
RCT Sample Cutting Template
RCTH-3D

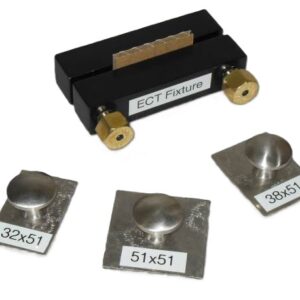

Edge Crush Test
For Corrugated Board
(Requires Compression Platen CPC100 or CPR150x300 as default)
ECT Sample Holder
+
ECT Templates
As per TAPPI Standards (Set of 3) (32×51, 38×51, 51×51 mm)
As per BIS : 30x50mm
As per ISO : 25x100mm (with Guide Block Holder for 100mm sample)
ECTH
Flat Crush Test
For Corrugated Board
(Requires Compression Platen CPC100 or CPR150x300 as default)
FCT Sample Holder
+
FCT Template 5x5cm (25cm2)
FCTH
Coefficient of Friction Test
For Plastic Films, Foils, Paper, Laminates.
COF Test Attachment
(Includes Base + Force Diversion Pulley + 200gm Sled + 2 SS Templates + Adhesive Tape + Clips + Cutter + Pull Cord)
COF-Set

Note :

  • All extra fixtures and adopters (not specifically mentioned above) are chargeable extra.
  • Please confirm your fixture / adopter requirements prior to placing order to avoid inconvenience
  • Please confirm your bottle sizes / shapes and send samples of each type of Bottle / Cap along with the order.
 Utilities Required for Universal Testing Machine (To be supplied by the buyer) :
  • Power Supply : 230/110 Volts AC at 50/60 Hz. (Fluctuation Free Power required)
  • 5 / 10 Kg Cast Iron Weights. These weights are required for calibration at the time of installation and then every 6-months for routine calibrations.
  • Desktop PC or Laptop PC (if Data Acquisition System is selected.)
    • Processor Type :   Intel Core I5 or better.
    • Memory :              4 GB RAM or better
    • Space :                  50 GB free HDD space           (minimum)
    • Monitor :               17” or Larger Color Monitor with FHD resolution or better
    • Operating System: Windows 10 or higher (with latest updates & patches)
    • Supporting Software :       Adobe Acrobat Reader and Microsoft Dot Net Framework (Latest Version)
    • Printer :                 Laser or Inkjet Printer.

 IQOQ Documentation Set available for Pharmaceutical companies
