Leak Burst Tester

The Leak Burst Tester is a versatile 2-in-1 equipment suitable for :

  1. Leakage Test
  2. Burst Test

Various fixture options available to test sealed packages such as :

  • Pouches
  • Bottles
  • Blister Packs
  • Cups
  • Lami-Tubes / Co-Ex Tubes
  • Medical Device Packaging

Confirms to : ASTM F1140 / F2054 / F2095 / F2096 / ISO 11607

Select from below options to generate the correct product code (SKU) and click on “Request for Quote” to send us an enqu

Description

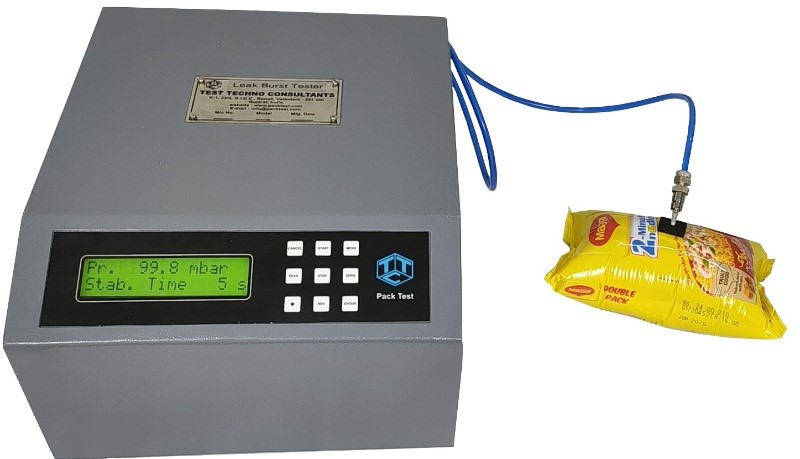

Leak Burst Tester                              LBT-15 Series

Leak Burst Tester is used to test Pouches / Cups / Tubes / Blister Packs / Trays for :

  1. Leakage Test
  2. Burst Test

Test Modes :

  1. Leak Test  : Your package is tested only for leakages.
  2. Burst Test : Your package is tested only for burst pressure.
  3. Leak & Burst Test : Your package is tested both for leakages, and burst pressure.

Principle of Operation :

Leak Test : Air is injected into the package, internally pressurized up to a set pressure and held for a set time. The equipment will automatically detect leakages by monitoring the pressure drop.

If the package is tested under water, you will also see air bubbles from leak points. Even micro leakages, which the equipment cannot detect via pressure drop, can be visible under water, making it a very reliable test.

Burst Test : Air is injected into the package, internally pressurized until the sample bursts open. The max burst pressure is displayed. This test is considered as a 360° Seal Strength / Seal Integrity Test.  You can identify the weakest point of your package as it will fail first.

Leak Burst Test : A combination of the above 2 tests. First the Leak Test will happen. If the package FAILS in Leak Test, the test is abandoned. If the package passes the Leak Test, it is automatically subjected to the Burst Test. You can do 2 test on the same package, while saving time on sample preparation. And of course, you waste less samples.

Technical Specifications :

  • Digital Model with Backlit LCD Display
  • Electro-Pneumatic, Table Top Model
  • With optional software to capture test data on to the PC directly and generate PDF test & calibration reports.
  • Auto-Calibration facility for user-friendly calibration.
  • Choice of Measurement units, selectable from Menu.
  bar mbar kPa psi
Capacity : 5 5000 500 72.5
Resolution : 0.0005 0.5 0.05 0.007
Working Range : 0.1 – 5.000 100 – 5000 10 – 500 1.45 – 72.5

DQ/IQ/OQ Documentation are supplied with pharma-specific models.

RS-232 Data Cable with USB-Serial Convertor are supplied with all models / SKUs with software.

Included with all models / SKUs :

  • 3 mtr long, 6mm PU tube to connect your compressed air supply to the Air Filter.
  • 2 mtr long, 6mm PU tube to connect Air Filter to Equipment
  • 2 mtr long, 6mm PU tube to connect Equipment to the Test Fixture.
  • Double Stage Air Filter (for models with APR) or Single Stage Air Filter (for models without APR).
  • Power Cable

Excludes :

  • Testing Fixtures (to be ordered separately)

Software Options :

  • No Software.
  • Regular Software (Not 21-CFR-11 Compliant).
  • 21-CFR-11 Compliant Software (Vantage).

Warranty :                  12 Months (Ex-Factory)

Utilities Required :

  1. Power Supply (Current : Max 5 Amps) :
    1. For India (Domestic Model) : 230 Volts A.C., 50 Hz. Clean power.
    2. For Outside India (Export Model) : As per your country’s power rating.
  2. Compressed Air @ 6 bar (87 psi)

For models with software

  1. Desktop / Laptop PC (Intel Core i3, 4gb RAM, Win10 OS, 1080p Monitor) or higher.

Test Fixture Options for Leak Burst Tester

Sr. Probe / Fixture Type Photo Suitable for

1.

Needle Probe

SKU : TF-LBT-NP

Includes :

–   Needles (10 nos)

–   EPDM Septum Stickers (100 nos, for 100 tests)

Recommended for < 1 bar burst pressures.

Maximum up to 2 bar.

Needle Probe for Leak Burst Tester Low – Medium Burst Packages (Unrestrained) :

  • Pouches
  • Cups
  • Trays
  • Tubes

Testing as per ASTM F1140 / F2095

For Empty Packages or Filled Packages (using optional Inline Air Filter)

See 1A below for options.

1A.

Inline Air Filter



Used along with Needle Probe for testing filled packages.



Not needed if testing empty packages only.

Inline Air Filter (Large) for Leak Burst Tester

Inline Air Filter – Large

SKU : TF-LBT-IAFL

For testing liquid / solid / powder filled packages.

Inline Air Filter (Small) for Leak Burst Tester

Inline Air Filter – Small

SKU : TF-LBT-IAFS

For testing solid or powder filled packages only.

No Liquid Allowed.

2.

Restraining Plate Fixture.

Includes :

  • Blister Pack Probe
  • Double Sided Adhesive Tape (2 rolls)
  • Single Hole Punch
Restraining Plate for Leak Burst Tester Medium / High Burst Pouches.

Or Pouches that exhibit elongation / stretch during testing.

Testing as per ASTM F2054

Can be used on Empty Pouches Only

SKU : Max Pouch Size
RP0810SS 8×10 Inches
RP1012SS 10×12 Inches
RP1218SS 12×18 Inches
RP2024SS 20×24 Inches
RP2430SS 24×30 Inches
RPCUSTSS Custom Size Available

3.

Test Stand

For Screw On Tubes

SKU : TF-LBT-SCTS

Screw Cap Test Stand for Leak Burst Tester Can be used on Filled or Empty tubes with Screw On Caps only.

Supplied with upto 5 cap adapter as per Tube + Cap samples provided by you.

You will have to send us 5 samples of each type of tube + cap combination you wish to test.

The cap will be removed, and embedded in the cap adapter for a perfect fit to the tube.

4.

Test Stand

For Snap On Tubes

SKU : TF-LBT-SNTS

Snap Cap Test Stand for Leak Burst Tester Can be used on Empty tubes with Snap On Caps only.

You will have to send us 5 samples of each type of tube + cap combination you wish to test.

An economy option (without test stand) is available as a Test Fixture (see item 4A).

4A

Test Fixture

For Snap On Tubes

SKU : TF-LBT-SNTF

Snap Cap Test Fixture for Leak Burst Tester

Normal Snap Cap

This is an Economical Option, to be used in-lieu of the above test stand.

For Snap On Caps only.

Manual Sample Clamping.

Note : Caps will need to be trimmed before testing.

Trimmed Cap

5.

Test Stand

For Open Tubes

SKU : TF-LBT-OTTS

Open Tube Stand for Leak Burst Tester Can be used on Unsealed, Open End, Empty Tubes with either Screw On or Snap On Caps.

Supplied with 1 tube adapter (Lower Plunger + Top Plate) as per sample provided by you.

If you have multiple sizes (ID) of tubes, you will have to order multiple test adopters

(SKU : TF-LBT-OTTS-TF)

You will have to send us 5 samples of each size (ID) of tube you wish to test.

6.

Special Fixtures

SKU : TF-LBT-CF

Custom Test Fixture for Leak Burst Tester For Special Packages that cannot be tested with any of the above test fixtures.



Download Leak Burst Tester Datasheet

Video of Leak Burst Tester

Additional information

Region

India, Outside India

Industry

FMCG / Food / Beverage (Non-Pharma), Pharmaceutical

Type

Standard, With Automatic Pressure Regulator (APR), With Pre-Filler, With APR and Pre-Filler

Software

No Software, Regular Software (Not 21-CFR-11 Compliant), 21-CFR-11 Compliant Software
